Inch taper roller bearing 37425/37625
You are here: Home » Products » Taper roller bearing » Inch taper roller bearing 37425/37625

Product Detail

loading

Share to:
sharethis sharing button

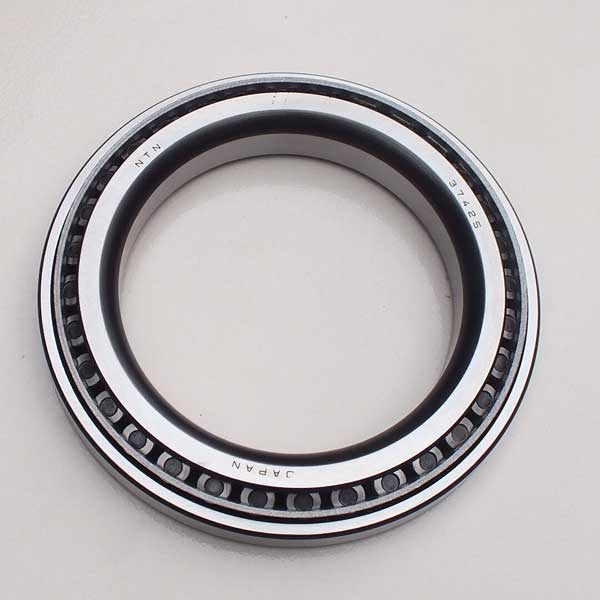

Inch taper roller bearing 37425/37625

The main purpose of such bearings: automotive front, rear, transmission, differential, pinion shaft, spindle, construction machinery, large-scale agricultural machinery, railway vehicles, gear reduction, the rolling mill roll neck small deceleration devic
Quantity:

Inch taper roller bearing 37425/37625

Quick Details:


Structure:taper

Type:roller

Inner diameter:107.95mm

Outer diameter:158.75mm

Width:23.02mm

Brand:  FAG INA NSK KOYO NTN HRB ZWZ…

Number of Row:single row

Place of origin: Sweden

Seals type:open,sealed


Description:

Jinan Kaiming Bearing Co.,Ltd can supply normal bearings and non-standard bearings. Also can customize bearings as drawing or samples.


Inch Tapered roller bearings is refers to the dimensions are in inches as a unit of measurement of the tapered roller bearings, the source from the Anglo American countries.

Tapered roller bearings inside, the outer ring has a tapered raceways, raceway fitted between the tapered roller. If tapered surface extending eventually converge to a point on the bearing axis. Tapered roller bearings are mainly used to bear radial load mainly radial, axial joint load. Axial bearing capacity by the contact angle, the greater the reach, the greater the axial load capacity Tapered roller bearings for the separation of bearings, with roller and cage inner ring inner components can be installed separately from the outer ring This kind of bearing shell limit the axis or axial displacement side allowed tilt axis relative to shell hole. In the radial load, it will produce additional axial force, therefore, generally in two support bearings, the bearing outer ring and inner ring with the face should be relatively installation.
