Bore Size: 0 - 30 mm
Outside Diameter: 0 - 62 mm

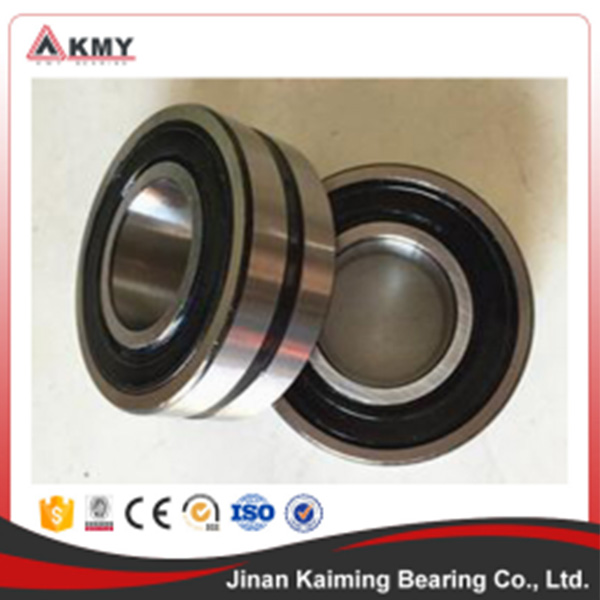

Model Number: BS2-2206-2CS/VT143
Seals Type: Sealed
Width: 25mm
Material: Gcr15
1. Application:
1)These bearing are widely used in automobile, electrical.
(Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines)
2)equipment,instrument,building machinery,rolling stock agricultural machinery and various specialized machineries.
2. Standard sealed bearing models:
| Principal dimension(mm) | Bearing number | Basic Load Rating(KN) | ||||
| d | D | B | Dynamic Cr | Static Cor | Limited speed | |
| 25 | 52 | 23 | BS2-2205-2CS/VT143 * | 49,9 | 44.0 | 3600 |
| 30 | 62 | 25 | BS2-2206-2CS/VT143 * | 66,1 | 60.0 | 2800 |
| 35 | 72 | 28 | BS2-2207-2CS/VT143 * | 88,8 | 85.0 | 2400 |
| 40 | 80 | 28 | BS2-2208-2CS/VT143 * | 98,5 | 90.0 | 2200 |
| 40 | 80 | 28 | BS2-2208-2CSK/VT143 * | 98,5 | 90.0 | 2200 |
| 40 | 90 | 38 | BS2-2308-2CS/VT143 * | 155.0 | 140.0 | 1900 |
| 45 | 85 | 28 | BS2-2209-2CS/VT143 * | 104.0 | 98.0 | 2000 |
| 45 | 85 | 28 | BS2-2209-2CSK/VT143 * | 104.0 | 98.0 | 2000 |
| 45 | 100 | 42 | BS2-2309-2CS/VT143 * | 190.0 | 183.0 | 1500 |
| 50 | 90 | 28 | BS2-2210-2CS/VT143 * | 107.0 | 108.0 | 1900 |
| 50 | 90 | 28 | BS2-2210-2CSK/VT143 * | 107.0 | 108.0 | 1900 |
| 50 | 110 | 45 | BS2-2310-2CS/VT143 * | 228.0 | 224.0 | 1400 |
| 55 | 100 | 31 | BS2-2211-2CS/VT143 * | 129.0 | 127.0 | 1700 |
| 55 | 100 | 31 | BS2-2211-2CSK/VT143 * | 129.0 | 127.0 | 1700 |
Bore Size: 0 - 30 mm
Outside Diameter: 0 - 62 mm
Model Number: BS2-2206-2CS/VT143
Seals Type: Sealed
Width: 25mm
Material: Gcr15
1. Application:
1)These bearing are widely used in automobile, electrical.
(Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines)
2)equipment,instrument,building machinery,rolling stock agricultural machinery and various specialized machineries.
2. Standard sealed bearing models:
| Principal dimension(mm) | Bearing number | Basic Load Rating(KN) | ||||
| d | D | B | Dynamic Cr | Static Cor | Limited speed | |
| 25 | 52 | 23 | BS2-2205-2CS/VT143 * | 49,9 | 44.0 | 3600 |
| 30 | 62 | 25 | BS2-2206-2CS/VT143 * | 66,1 | 60.0 | 2800 |
| 35 | 72 | 28 | BS2-2207-2CS/VT143 * | 88,8 | 85.0 | 2400 |
| 40 | 80 | 28 | BS2-2208-2CS/VT143 * | 98,5 | 90.0 | 2200 |
| 40 | 80 | 28 | BS2-2208-2CSK/VT143 * | 98,5 | 90.0 | 2200 |
| 40 | 90 | 38 | BS2-2308-2CS/VT143 * | 155.0 | 140.0 | 1900 |
| 45 | 85 | 28 | BS2-2209-2CS/VT143 * | 104.0 | 98.0 | 2000 |
| 45 | 85 | 28 | BS2-2209-2CSK/VT143 * | 104.0 | 98.0 | 2000 |
| 45 | 100 | 42 | BS2-2309-2CS/VT143 * | 190.0 | 183.0 | 1500 |
| 50 | 90 | 28 | BS2-2210-2CS/VT143 * | 107.0 | 108.0 | 1900 |
| 50 | 90 | 28 | BS2-2210-2CSK/VT143 * | 107.0 | 108.0 | 1900 |
| 50 | 110 | 45 | BS2-2310-2CS/VT143 * | 228.0 | 224.0 | 1400 |
| 55 | 100 | 31 | BS2-2211-2CS/VT143 * | 129.0 | 127.0 | 1700 |
| 55 | 100 | 31 | BS2-2211-2CSK/VT143 * | 129.0 | 127.0 | 1700 |
