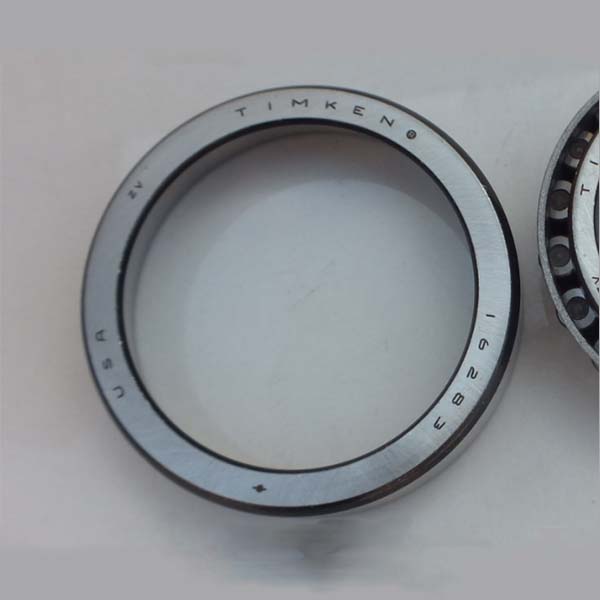

Good performance single row inch taper roller bearing 16150/16283/Q

Model Number: 16150/16283/Q Outside Diameter: 72.238mm Inside Diameter: 38.1mm Width: 23.812mm
Quantity:

Good performance single row inch taper roller bearing 16150/16283/Q


Model Number: 16150/16283/Q
Outside Diameter:   72.238mm
Inside Diameter:   38.1mm
Width: 23.812mm


Description



Taper roller bearing 16150/16283/Q are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.



Taper roller bearing 16150/16283/Q are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

Taper Roller Bearing 16150/16283/Q Advantage:



1: Suitable for the radial and axial loaded.
2: With low wear rate and long life service.
3: Can be used over a large temperature range.
4: Allows maintenance free and long life operation.
5: Suitable for dirty corrosion impact load and edge loading.
6: The base material provided a good shock absorbing capacity.
7: With low and smoothly coefficient of friction and without stick slip effects.
