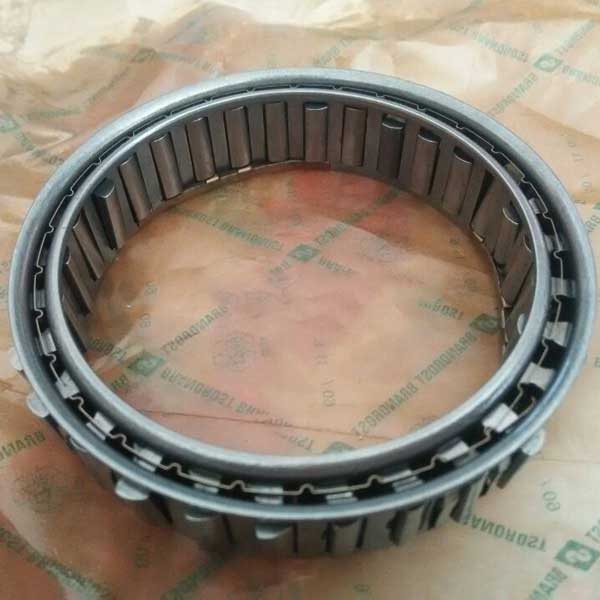

DC Series Sprag Clutch Freewheel Clutches DC 7221 B
Product name:DC Series Sprag Clutches
Item:Freewheel Clutches
Details:

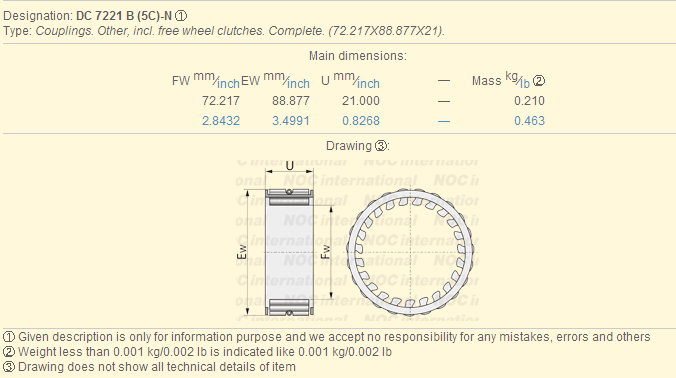

| Type | Dimension(mm) | ||
| a | c | e min | |
| DC2222G | 22.225 | 38.885 | 10 |
| DC2776 | 27.762 | 44.422 | 13.5 |
| DC3034 | 30.34 | 47 | 13.5 |
| DC3175 | 31.75 | 48.41 | 13.5 |
| DC3809A | 38.092 | 54.752 | 16 |
| DC4127 | 41.275 | 57.935 | 13.5 |
| DC4445A | 44.45 | 61.11 | 16 |
| DC4972 | 49.721 | 66.381 | 13.5 |
| DC5476A | 54.765 | 71.425 | 16 |
| DC5476B | 54.765 | 71.425 | 21 |
| DC5476C | 54.765 | 71.425 | 25.4 |
| DC5776A | 57.76 | 74.42 | 16 |
| DC6334B | 63.34 | 80 | 21 |
| DC7221 | 72.217 | 88.877 | 13.5 |
| DC7221B | 72.217 | 88.877 | 21 |
| DC7969C | 79.698 | 96.358 | 25.4 |
| DC8334C | 83.34 | 100 | 25.4 |
| DC8729A | 87.29 | 103.96 | 16 |
| DC10323A | 103.231 | 119.891 | 16 |
| DC12334C | 123.34 | 140 | 25.4 |
| DC12388C | 123.881 | 142.88 | 25.4 |
