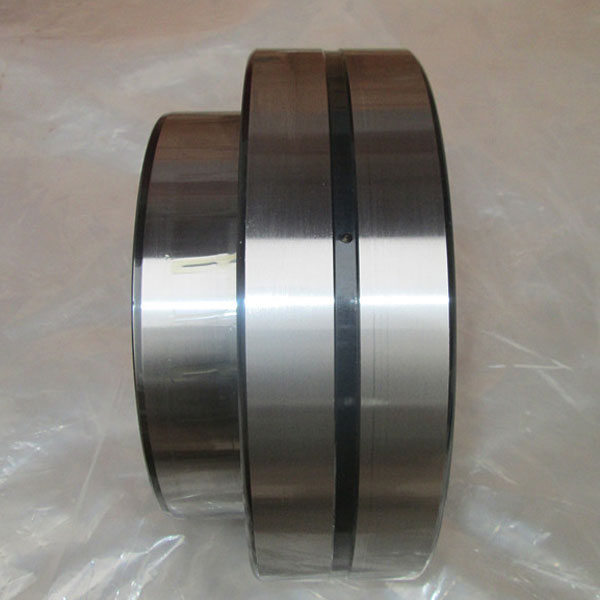

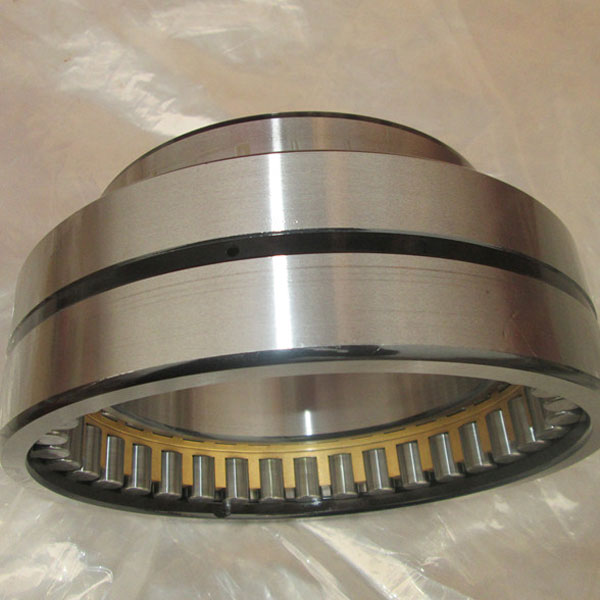

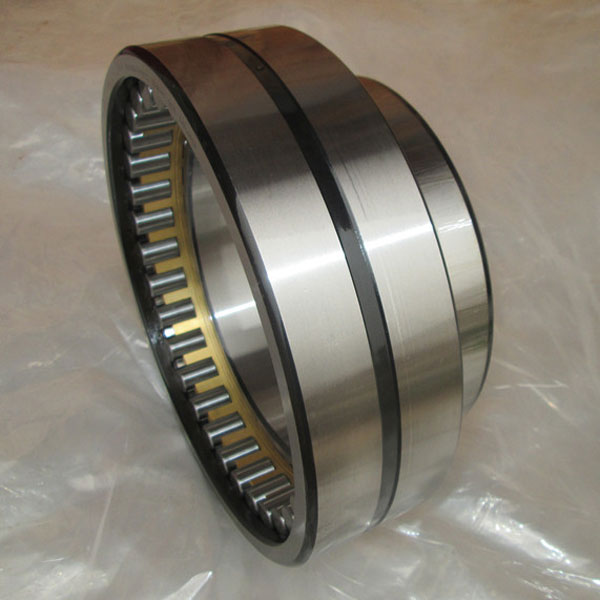

Cylindrical roller bearings cylindrical guide NNU4922
NNU design double row Cylindrical roller bearings, with a very low cross sectional height, provide a higher degree of stiffness than bearings in the NN 30 series.
Description of bearings NNU4922-S-K-M-SP
Non-locating bearing, double row, with tapered bore (taper 1:12), separable, with cage, reduced radial internal clearance, restricted tolerances
Cross reference:NNU 4922 B/SPW33
ID: 110 mm
OD: 150 mm
Width: 40 mm
Weight; 2.01 kg
Basic dynamic load rating: 132 kN
Basic static load rating: 270 kN
Fatigue load limit: 42.5 kN
Limiting speed for grease lub.: 5000 rpm
Limiting speed for oil lub.: 6000 rpm
