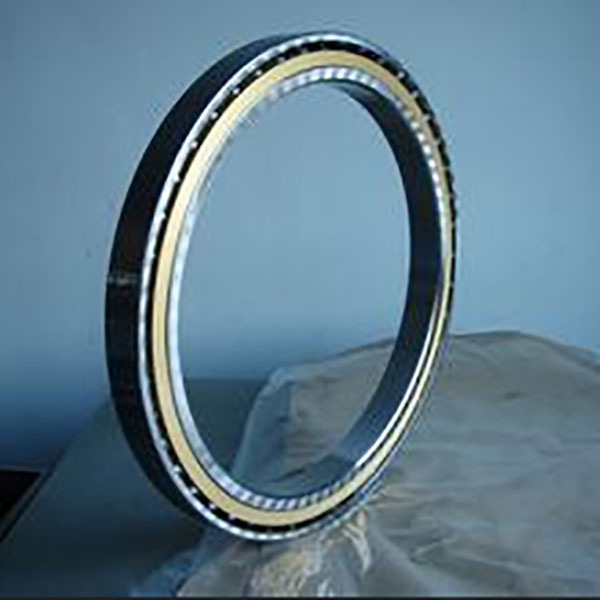

618 series and 619 series are thin section bearing, they are mostly used for cylinder head of two or three wheelers engines. Thus this area for cam shaft mounting is quite less, so the thin section ball bearings are suitable due to smaller width and outer diameter.618/1000 EMC4 is quite larger dimension machined brass cage thin section ball bearing.
the technical datasheet for 618/1000 EMC4,
Type: deep groove ball bearing, single row
Dimension: 1000mm x 1220mm x 100mm
Basic dynamic load rating: 637KN
Basic static load rating: 1800KN
Reference speed: 750 r/min
Limiting speed: 600 r/min
Weight: 227 KGS
Origin: made in France
1)Materials for rings and rolling elements
While the contact surfaces between the bearing rings and rolling elements are subjected to repeated heavy stress,they must still maintain high rotational precission,therefore, the materials used for bearings rings and rolling elements require the following characteristics:
High rolling contact fatigue strength
High hardness
High wear resistance
High dimensional stability
High mechanical strength
The material used by our companyis high carbonchromium bearings steel GCr15-GB/T18254 equivalent such as AISI52100(USA),DIN100Cr6(Germany) JISSUJ2(Japan) and BS534A99(UK).
2)Materials for cages
The materials for cages must have strength to with stand rotation at load and shock load. Low frictional efficiency light weight and be able to with stand operation temperature.
The material used in ribbon cages or crown cages is 08F or SPCC pressed.
It is chemical compositionis shown for extra-high speed application. Plastic cages such as glass reinforced polymideareused.
These plastic crown have the advantages oflow torque,long grease lefe and low noise,etc.
3)Vibration and noise
The measuring parameter of vibration adopted by RNB is the vibration acceleration of vibration velocity.
The measuring units and measuring method are specified by JB/T5314 and JB/T5313 In the process of measuring vibration strictly controlled noise by using acoustics.
4)Internal clearance
Single row deep groove ball bearings are manufactured with Normal radial internal clearanceas standard. Most of the bearings are also available with C3 radial internal clearance. Some of the bearings can also be supplied with as maller C2 clearance or the much greater C4 or C5 clearances. In addition, deep groove ball bearings are available with reduced or displaced internal clearance ranges. These special clearances may use reduced ranges of standard clearance classes or partitions of adjacent classes, see designation suffix CN insection.
5)Tolerances
Single row deep groove ball bearings are manufactured as standard to normal tolerances.
Single row deep groove ball bearings are produced to higher precision than the ISO Normal tolerances. The dimensional accuracy corresponds to P6 tolerances, expect the width tolerance,which is considerably tighter and reduced to
-0/–60μm for bearings with outside diameter up to 110 mm
-0/–100 μm for larger bearings.
The running accuracy depend on the bearing size and corresponds to
- P5 tolerances for bearings up to a 52mm outside diameter
- P6 tolerances for bearings above 52 mm up to 110 mm outside diameter
- Normal tolerances for larger bearings.
