| Quantity: | |
|---|---|
Bore Size: 0 - 105 mm
Outside Diameter: 0 - 190 mm
Model Number: 30221

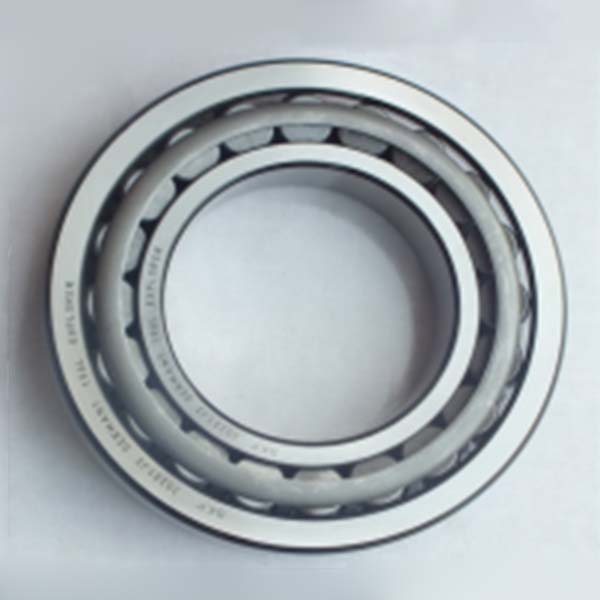

Description: Taper Roller Bearings 30221
Weight: 4.38kgs
We can offer the following variants:
· 302xx, 303xx, 313xx, 320xx, 322xx, 323xx and 329xx series
· Double Row Tapered Roller Bearings Series (Details can be provide on request)
· Pressed steel and polyamide cage
· Standard precision P0 and higher precision P6.
· Wide range of Inch type bearings is also available.
Technical specifications:
| Products Name | Taper Roller Bearings 30221 |
| Ring material | Chrome Steel, Carbon Steel, Stainless Steel |
| Material: | GCr15 GCr15SiMn |
| Model NO. | 30221 |
| I.D.: | 105 mm |
| O.D.: | 190 mm |
| Width: | 36 mm |
| Row Number | Single Row, Two Rows |
| Precision | P0,P6,P5,P4,P2 |
| Clearance: | C0 C1 C2 C3 |
| Application: | Mine machine, port hoisting machine, port transfer equipment, crane; excavator, concrete machine,paper machine, weave machine, steel and electronic plants etc. machines and equipments. |
