Spherical roller Bearing
NSK
8482102000

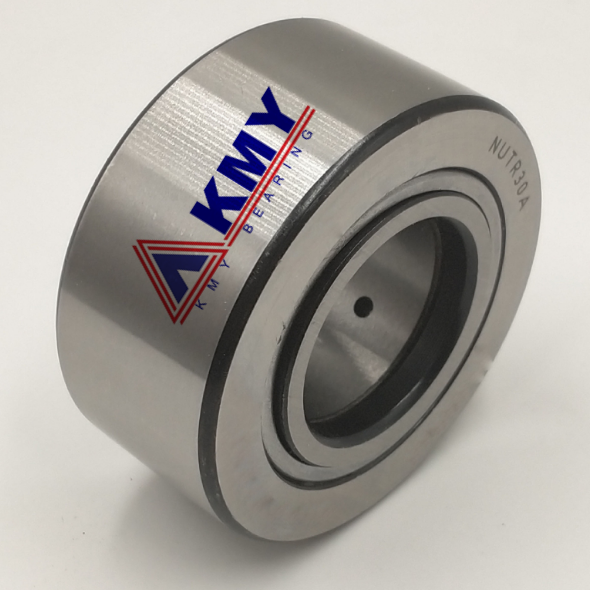

Yoke type track roller NUTR30A 30x62x29 mm
| Specifications |
| |
| Benefits |
| |
| Application |
| |
| Properties |
|
Roller bearings are used in all main shaft and auxiliary drive shaft applications to support pure radial load, and allow for axial shaft elongation due to temperature changes with no additional load effect on the bearing.
Related Catalogue :
| Euro Ref | d (mm) | D (mm) | B (mm) | H (mm) | S1 (mm) | r (mm) | C (kN) | Co (kN) | Max rpm |
| NUTR 20 | 20 | 47 | 24 | 25 | 0.5 | 1.5 | 28 | 35 | 4200 |
| NUTR 20-52 | 20 | 52 | 24 | 25 | 0.5 | 1.5 | 31.5 | 41 | 4200 |
| NUTR 25 | 25 | 52 | 24 | 25 | 0.5 | 1.5 | 29 | 37.5 | 3400 |
| NUTR 25-62 | 25 | 62 | 24 | 25 | 0.5 | 1.5 | 35.5 | 50 | 3400 |
| NUTR 30 | 30 | 62 | 28 | 29 | 0.5 | 1.5 | 40 | 50 | 2600 |
| NUTR 30-72 | 30 | 72 | 28 | 29 | 0.5 | 1.5 | 47.5 | 64 | 2600 |
| NUTR 35 | 35 | 72 | 28 | 29 | 1 | 2 | 44.5 | 60 | 2100 |
| NUTR 35-80 | 35 | 80 | 28 | 29 | 1 | 2 | 51 | 72 | 2100 |
| NUTR 40 | 40 | 80 | 30 | 32 | 1 | 2 | 55 | 75 | 1600 |
| NUTR 40-90 | 40 | 90 | 30 | 32 | 1 | 2 | 66 | 95 | 1600 |
| NUTR 45 | 45 | 85 | 30 | 32 | 1 | 2 | 56 | 78 | 1400 |
| NUTR 45-100 | 45 | 100 | 30 | 32 | 1 | 2 | 71 | 107 | 1400 |
| NUTR 50 | 50 | 90 | 30 | 32 | 1 | 2 | 57 | 81 | 1300 |
| NUTR 50-110 | 50 | 110 | 30 | 32 | 1 | 2 | 76 | 120 | 1300 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Packing & Delivery
Company Profie
FAQ
Q:What’s your after-sales service and warranty?
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customized bearings,housings , oil seals , with different size and packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. according to the production situation .
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes, we can offer free samples for testing before bulk order , Sample charge will be refundable upon confirmation of the order.
Q:How to place orders?
1. contact us to confirm the model, brand and quantity, price ,consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
