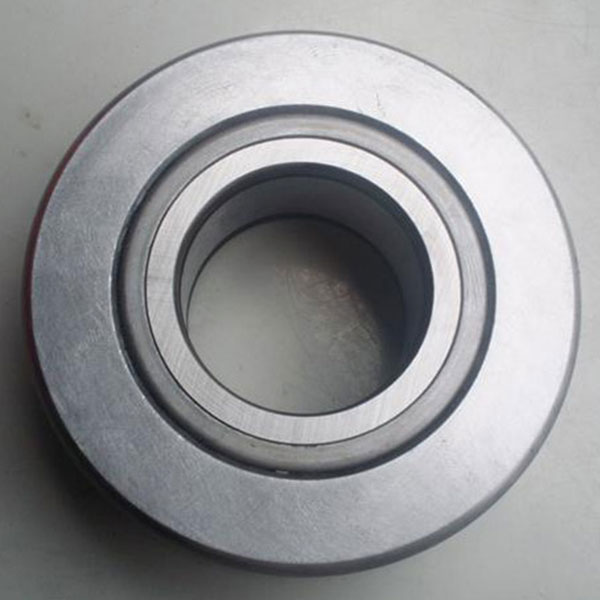

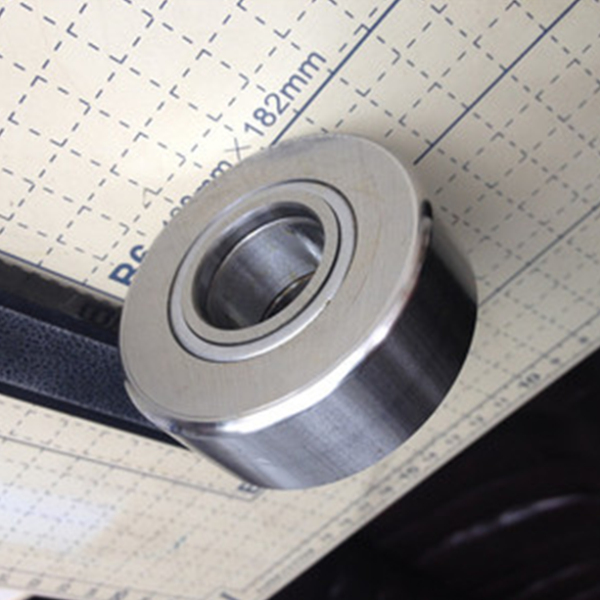

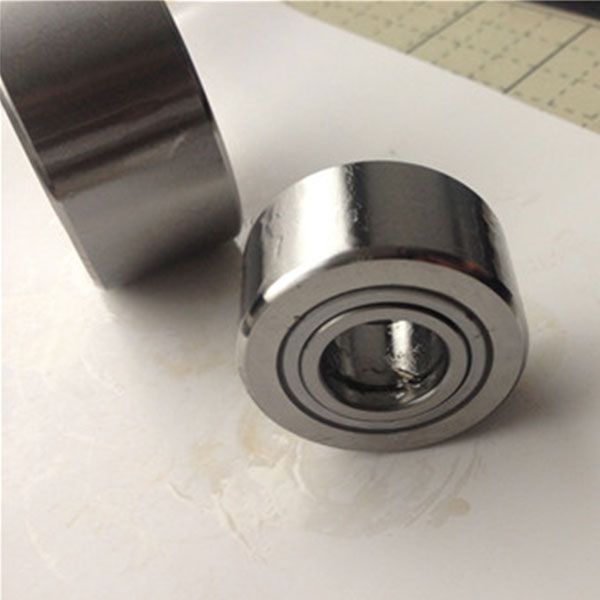

Yoke Roller/Roller followers are designed for Outer ring rotation, with needle bearings/Rollers inside a thick outer ring. They are available in caged, full compliment needles & Full compliment rollers variations & have either a Corwned on Cylindrical outer diameter. They can support high radial & axial loads arising from misalignments and skewed running and are suitable for cam drives, slideways, conveying equipment etc. The bearings are available in several designs, including sealed & unsealed versions.
| Part# | Weight | Dimensions | Basic Radial load(N) | Speed limit | |||||||
|
|
| d | D | B | C | d2 | r | r1 | dyn. | stat. | grease |
|
| g | mm | min | min | Cr | Cor | r/min | ||||
| NUTR 15 | 99 | 15 | 35 | 19 | 18 | 20 | 0,6 | 0,3 | 15,75 | 17,64 | 6500 |
| NUTR 17 | 147 | 17 | 40 | 21 | 20 | 22 | 1 | 0.5 | 19.32 | 23.7 | 5500 |
| NUTR 1542 | 158 | 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 | 19 | 23 | 6500 |
| NUTR 1747 | 220 | 17 | 47 | 21 | 20 | 22 | 1 | 0.5 | 22.36 | 29.4 | 5500 |
| NUTR 20 | 245 | 20 | 47 | 25 | 24 | 27 | 1 | 0.5 | 29.4 | 36.75 | 4200 |
| NUTR 2052 | 321 | 20 | 52 | 25 | 24 | 27 | 1 | 0.5 | 33 | 43.05 | 4200 |
| NUTR 25 | 281 | 25 | 52 | 25 | 24 | 31 | 1 | 0.5 | 30.45 | 39.38 | 4200 |
| NUTR 2562 | 450 | 25 | 62 | 25 | 24 | 31 | 1 | 0.5 | 37.27 | 52.5 | 4200 |
| NUTR 30 | 465 | 30 | 62 | 29 | 28 | 38 | 1 | 0.5 | 42 | 52.5 | 2600 |
| NUTR 3072 | 697 | 30 | 72 | 29 | 28 | 38 | 1 | 0.5 | 49.8 | 67.2 | 2600 |
| NUTR 35 | 630 | 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | 46.7 | 63 | 2100 |
| NUTR 3580 | 836 | 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 | 53.55 | 75.6 | 2100 |
| NUTR 40 | 816 | 40 | 80 | 32 | 30 | 50.5 | 1.1 | 0.6 | 57.75 | 78.75 | 1600 |
| NUTR 45 | 883 | 45 | 85 | 32 | 30 | 55.2 | 1.1 | 0.6 | 58.8 | 81.9 | 1400 |
| NUTR 4090 | 1129 | 40 | 90 | 32 | 30 | 50.5 | 1.1 | 0.6 | 69.3 | 96.9 | 1600 |
| NUTR 50 | 950 | 50 | 90 | 32 | 30 | 59.8 | 1.1 | 0.6 | 59.8 | 83.43 | 1300 |
| NUTR 45100 | 1396 | 45 | 100 | 32 | 30 | 55.2 | 1.1 | 0.6 | 74.55 | 111.25 | 1400 |
| NUTR 50110 | 1690 | 50 | 110 | 32 | 30 | 59.8 | 1.1 | 0.6 | 79 | 126 | 1300 |
