Widespread use angular contact ball bearing 7002
Quick Details
Structure:angular contact
Type:ball

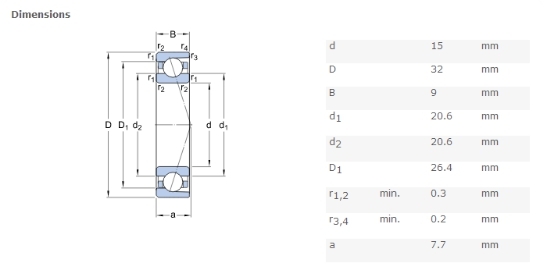

Bore size:15mm
Outside diameter:32mm
Width:9mm
Brand: SKF FAG INA NSK KOYO NTN HRB ZWZ…
Number of Row:single
Place of origin:Sweden
Seals type: open,sealed
Jinan Kaiming Bearing Co.,Ltd can supply normal bearings and non-standard bearings. Also can customize bearings as drawing or samples.
| Name | Angular contact ball bearing |
| Quality standard | ISO9001:2000 standard |
| Delivery date | Normally ready goods and stock |
| Payment terms | T/T, Paypal, Western Union, Moneygram |
| Application | automotive, rolling mill, mining, metallurgical, plastic machinery,etc. |
| Package | a. According to customer's requirements. b. Original TIMKEN NSK NTN KOYO IKO good quality packaging. c. Laser mark on the bearing. d. Bearing wrapped by vacuum packaging. e. The outer is color polybag + box + carton, industrial standard packag |
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. The retainer is made of brass, synthetic resin of others subject to individual bearing's features and application conditions.
Widespread use angular contact ball bearing 7002
Quick Details
Structure:angular contact
Type:ball
Bore size:15mm
Outside diameter:32mm
Width:9mm
Brand: SKF FAG INA NSK KOYO NTN HRB ZWZ…
Number of Row:single
Place of origin:Sweden
Seals type: open,sealed
Jinan Kaiming Bearing Co.,Ltd can supply normal bearings and non-standard bearings. Also can customize bearings as drawing or samples.
| Name | Angular contact ball bearing |
| Quality standard | ISO9001:2000 standard |
| Delivery date | Normally ready goods and stock |
| Payment terms | T/T, Paypal, Western Union, Moneygram |
| Application | automotive, rolling mill, mining, metallurgical, plastic machinery,etc. |
| Package | a. According to customer's requirements. b. Original TIMKEN NSK NTN KOYO IKO good quality packaging. c. Laser mark on the bearing. d. Bearing wrapped by vacuum packaging. e. The outer is color polybag + box + carton, industrial standard packag |
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. The retainer is made of brass, synthetic resin of others subject to individual bearing's features and application conditions.
