TF28KW02
NSK
TF28KW02
Wheel bearing TF28KW02/ TF38KW01 tapered roller bearing - NSk bearing
Specification: TF28KW02
Model: TF28KW02
Inner diameter: 28mm
outer diameter: 52mm
Width: 18.499mm
Number of row: 1
Material: GCr15 chrome steel
Cage: Steel cage
Certificate Standard: ISO9001
Contact:
Email: koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Application of Tapered roller bearing
1. All type of bearing are windly used in automobile and electrical machinery.
Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines.
2. Equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries.
Tapered roller bearing - Wheel bearing

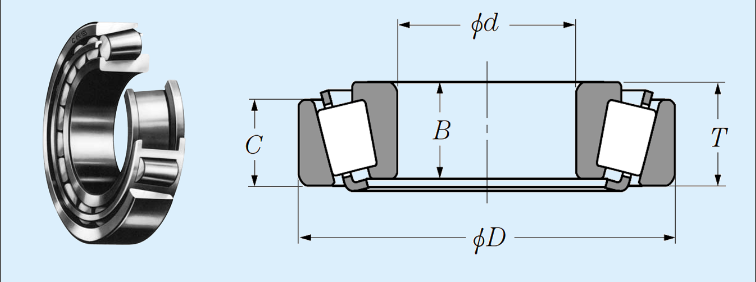

| Bearing Model | Dimensions (mm) | Load Rating (KN) | W(kg) | |||||||
| d | D | T | B | C | R min | r min | Dynamic | Static | ||
| C | C0 | |||||||||
| 09081/09195 | 20.625 | 49.225 | 19.845 | 21.539 | 14.288 | 1.5 | 1.3 | 38 | 38.2 | 0.174 |
| 09081/09196 | 20.625 | 49.225 | 23.02 | 21.539 | 17.462 | 1.5 | 1.5 | 38 | 38.2 | 0.193 |
| LM12748/LM12710 | 21.43 | 45.237 | 15.494 | 16.638 | 12.065 | 1.3 | 1.3 | 27.8 | 33.4 | 0.121 |
| M12649/M12610 | 21.43 | 50.005 | 17.526 | 18.288 | 13.97 | 1.3 | 1.3 | 39.8 | 40.6 | 0.17 |
| 15028 | 22 | 41 | 14.5 | 14.6 | 11.4 | 1 | 1 | 26.3 | 30 | 0.082 |
| JL22349/JL22310-P | 22 | 41 | 14.4 | 14.4 | 11.4 | 1 | 1 | 26.3 | 30 | 0.082 |
| LM12749/LM12710 | 22 | 45.237 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 27.8 | 33.4 | 0.117 |
| LM12749/LM12711 | 22 | 46 | 15.494 | 16.637 | 12.065 | 1.3 | 1.3 | 27.8 | 33.4 | 0.12 |
| R22-1X/R20-11X | 22 | 47 | 11.8 | 12 | 11.5 | 1.5 | 1.5 | 21.2 | 22.3 | 0.101 |
| 07087/07204 | 22.225 | 51.994 | 15.011 | 14.26 | 12.7 | 1.3 | 1.3 | 26.78 | 28.93 | 0.157 |
| 07087/07210X | 22.225 | 50.8 | 15.011 | 14.26 | 12.7 | 1.3 | 1.5 | 26.78 | 28.93 | 0.147 |
| 07087X/07210X | 22.225 | 50.8 | 15.011 | 14.26 | 12.7 | 1.5 | 1.5 | 26.78 | 28.93 | 0.147 |
| 1380/1328 | 22.225 | 52.388 | 19.368 | 20.168 | 14.288 | 1.5 | 1.5 | 40 | 41 | 0.192 |
| 1755/1729 | 22.225 | 56.896 | 19.368 | 19.837 | 15.875 | 1.3 | 1.3 | 40.5 | 43.5 | 0.249 |
| M12648/M12610 | 22.225 | 50.005 | 17.526 | 18.288 | 13.97 | 1.3 | 1.3 | 39.8 | 40.6 | 0.164 |
| 07097/07204 | 25 | 51.994 | 15.011 | 14.26 | 12.7 | 1.5 | 1.3 | 26.78 | 28.93 | 0.145 |
| 07100/07196 | 25.4 | 50.005 | 13.495 | 14.26 | 9.525 | 1 | 1 | 26.78 | 28.93 | 0.117 |
| 07100/07196-V | 25.4 | 50.005 | 13.495 | 14.26 | 9.525 | 1 | 1 | 26.78 | 28.93 | 0.117 |
| 07100/07204 | 25.4 | 51.994 | 15.011 | 14.26 | 12.7 | 1 | 1.3 | 26.78 | 28.93 | 0.143 |
| 07100S/07210X | 25.4 | 50.8 | 15.011 | 14.26 | 12.7 | 1.5 | 1.5 | 26.78 | 28.93 | 0.133 |
| 15100/15245 | 25.4 | 62 | 19.05 | 20.638 | 14.288 | 3.5 | 1.3 | 44.7 | 50.9 | 0.292 |
| 15100/15250 | 25.4 | 63.5 | 20.638 | 20.638 | 15.875 | 3.5 | 1.3 | 44.7 | 50.9 | 0.324 |
| 15100/15250X | 25.4 | 63.5 | 20.638 | 20.638 | 15.875 | 3.5 | 1.5 | 44.7 | 50.9 | 0.324 |
| 15101/15243 | 25.4 | 61.912 | 19.05 | 20.638 | 14.288 | 0.8 | 2 | 44.7 | 50.9 | 0.292 |
| 15101/15245 | 25.4 | 62 | 19.05 | 20.638 | 14.288 | 0.8 | 1.3 | 44.7 | 50.9 | 0.294 |
| 15101/15250 | 25.4 | 63.5 | 20.638 | 20.638 | 15.875 | 0.8 | 1.3 | 44.7 | 50.9 | 0.304 |
| 15101/15250X | 25.4 | 63.5 | 20.638 | 20.638 | 15.875 | 0.8 | 1.5 | 44.7 | 50.9 | 0.304 |
| 15102/15245 | 25.4 | 62 | 19.05 | 20.638 | 14.288 | 1.5 | 1.3 | 44.7 | 50.9 | 0.3 |
| 15578/15520 | 25.4 | 57.15 | 17.463 | 17.462 | 13.495 | 1.3 | 1.5 | 37.8 | 42.7 | 0.218 |
| 1986/1922 | 25.4 | 57.15 | 19.845 | 19.355 | 15.875 | 1.3 | 1.5 | 41.9 | 46.9 | 0.236 |
| 1986/1931 | 25.4 | 60.325 | 19.845 | 19.355 | 15.875 | 1.3 | 1.3 | 41.9 | 46.9 | 0.273 |
| 1986/1932 | 25.4 | 58.738 | 19.05 | 19.355 | 15.08 | 1.3 | 1.3 | 41.9 | 46.9 | 0.248 |
| L44643/L44610 | 25.4 | 50.292 | 14.224 | 14.732 | 10.668 | 1.3 | 1.3 | 26.7 | 32.5 | 0.128 |
| L44643RS/L44610 | 25.4 | 50.292 | 14.224 | 14.732 | 10.668 | 1.3 | 1.3 | 26.7 | 32.5 | 0.134 |
| M84548/M84510 | 25.4 | 57.15 | 19.431 | 19.431 | 14.732 | 1.5 | 1.5 | 42.1 | 49.3 | 0.239 |
| 15579X/15520 | 25.987 | 57.15 | 17.463 | 17.462 | 13.495 | 3.5 | 1.5 | 37.8 | 42.7 | 0.212 |
| 15103S/15243 | 26.162 | 61.912 | 19.05 | 19.939 | 14.288 | 0.8 | 2 | 44.7 | 50.9 | 0.278 |
| 15103S/15245 | 26.162 | 62 | 19.05 | 19.939 | 14.288 | 0.8 | 1.3 | 44.7 | 50.9 | 0.224 |
| M84549/M84510 | 26.987 | 57.15 | 19.431 | 19.431 | 14.732 | 1.5 | 1.5 | 42.1 | 49.3 | 0.229 |
| 15106/15245 | 26.988 | 62 | 19.05 | 20.638 | 14.288 | 0.8 | 1.3 | 44.7 | 50.9 | 0.284 |
| 15106/15250 | 26.988 | 63.5 | 20.638 | 20.638 | 15.875 | 0.8 | 1.3 | 44.7 | 50.9 | 0.31 |
| 15106/15250X | 26.988 | 63.5 | 20.638 | 20.638 | 15.875 | 0.8 | 1.5 | 44.7 | 50.9 | 0.316 |
| 15580/15520 | 26.988 | 57.15 | 17.463 | 17.462 | 13.495 | 3.5 | 1.5 | 37.8 | 42.7 | 0.212 |
| L44649/L44610 | 26.988 | 50.292 | 14.224 | 14.732 | 10.668 | 3.5 | 1.3 | 26.7 | 32.5 | 0.119 |
| 15023 | 28 | 67 | 20.5 | 20.5 | 16 | 0.6 | 0.6 | 53.3 | 60.7 | 0.352 |
| 15056/320/28XF | 28 | 52 | 15.75 | 18.5 | 12 | 3.5 | 1.5 | 31.4 | 40.4 | 0.145 |
| TF28KW02 | 28 | 52 | 18.499 | 18.499 | 16 | |||||
| J15585/15520 | 28 | 57.15 | 17.463 | 17.462 | 13.495 | 3.5 | 1.5 | 37.8 | 42.7 | 0.2 |
| 02474/02420 | 28.575 | 68.262 | 22.225 | 22.225 | 17.462 | 0.8 | 1.5 | 56.2 | 65.7 | 0.399 |
| 02872/02820 | 28.575 | 73.025 | 22.225 | 22.225 | 17.462 | 0.8 | 3.3 | 56 | 66 | 0.473 |
| 15112/15245 | 28.575 | 62 | 19.05 | 20.638 | 14.288 | 3.5 | 1.3 | 44.7 | 50.9 | 0.27 |
| 15112/15250 | 28.575 | 63.5 | 20.638 | 20.638 | 15.875 | 3.5 | 1.3 | 44.7 | 50.9 | 0.302 |
| 15112/15250X | 28.575 | 63.5 | 20.638 | 20.638 | 15.875 | 3.5 | 1.5 | 44.7 | 50.9 | 0.3 |
| 1985/1932 | 28.575 | 58.738 | 19.05 | 19.355 | 15.08 | 0.8 | 1.3 | 41.9 | 46.9 | 0.228 |
| 1988/1922 | 28.575 | 57.15 | 19.845 | 19.355 | 15.875 | 3.5 | 1.5 | 41 | 45 | 0.213 |
| 2474/2420 | 28.575 | 68.262 | 22.225 | 23.812 | 17.462 | 0.8 | 1.5 | 64.7 | 73.7 | 0.41 |
| M86647/M86610 | 28.575 | 64.292 | 21.433 | 21.433 | 16.67 | 1.5 | 1.5 | 48.1 | 67 | 0.343 |
| 329013A/Q | 29 | 50.292 | 14.224 | 17.5 | 10.7 | 2.5 | 1.3 | 27.7 | 33.86 | 0.119 |
| 329013FA/Q | 29 | 50.292 | 14.224 | 17.5 | 10.7 | 2.5 | 1.3 | 27.7 | 33.86 | 0.113 |
| L45449/L45410 | 29 | 50.292 | 14.224 | 14.732 | 10.668 | 3.5 | 1.3 | 25.4 | 32.5 | 0.109 |
| 15117/15245 | 29.987 | 62 | 19.05 | 20.638 | 14.288 | 1.3 | 1.3 | 44.7 | 50.9 | 0.26 |
| 15117/15245-V | 29.987 | 62 | 19.05 | 20.638 | 14.288 | 1.3 | 1.3 | 44.7 | 50.9 | 0.262 |
| 578225 | 21.43 | 50.005 | 17.038 | 17.8 | 13.5 | 155.56 | 187.27 | 0.165 | ||
| TR286220 | 28 | 62 | 19.75 | 18 | 0.622 | |||||
| 322/22 | 22 | 50 | 19.25 | 18 | 15 | 1 | 1 | 36.5 | 40.5 | 0.18 |
