UC206+P206 NSK UCP206 - 30mm bore Pilow block bearing
Specification: UCP206
Model: UCP206
Brand: SKF/FAG/TIMKEN/NTN/NSK/IKO/INA/OEM/KMY...
Series: UCP Pillow Block Bearing
Inner diameter(d): 30mm
Outerside diameter(D): 165mm
Highth(C): 83.5mm
Weight(m): 1.2kg
Dynamic load rating: 19.2KN
Static load rating: 11.4KN
Fatigue laod limit: 0.48KN
Contact: Email: koyo@chinakmbearing.com; Whatsapp: +86-17854271903
Pillow Block Bearing
Description: A pillow block usually refers to a housing with an included anti-friction bearing. A pillow block refers to any mounted bearing wherein the mounted shaft is in a parallel plane to the mounting surface, and perpendicular to the center line of the mounting holes, as contrasted with various types of flange blocks or flange units.
UCP Pillow Block Bearing Series

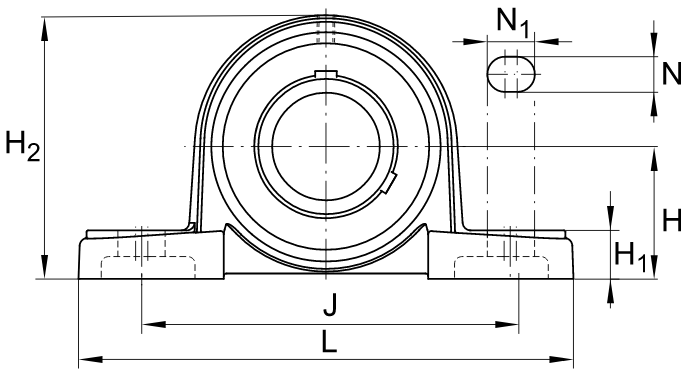

| Model number | Dimension/mm | ||||||
| d | B | S | Lmax | Amax | J | H | |
| UCP 204 | 17 | 27.4 | 11.5 | 129 | 39 | 96 | 30.2 |
| UCP 205 | 20 | 31 | 12.7 | 134 | 39 | 96 | 33.3 |
| UCP 206 | 25 | 34.1 | 14.3 | 142 | 39 | 105 | 36.5 |
| UCP 207 | 30 | 38.1 | 15.9 | 167 | 48 | 121 | 42.9 |
| UCP 208 | 35 | 42.9 | 17.5 | 172 | 48 | 136 | 47.6 |
| UCP 209 | 40 | 49.2 | 19 | 186 | 55 | 136 | 49.2 |
| UCP 210 | 45 | 49.2 | 19 | 192 | 55 | 146 | 54 |
| UCP 211 | 50 | 51.6 | 19 | 208 | 61 | 159 | 57.2 |
| UCP 212 | 55 | 55.6 | 22.2 | 233 | 61 | 172 | 63.5 |
| UCP 213 | 60 | 65.1 | 25.4 | 243 | 71 | 186 | 69.9 |
| UCP 214 | 65 | 65.1 | 25.4 | 268 | 73 | 203 | 76.2 |
| UCP 215 | 70 | 74.6 | 30.2 | 274 | 74 | 210 | 79.4 |
| UCP 216 | 75 | 77.8 | 33.3 | 300 | 83 | 217 | 82.6 |
| UCP 217 | 80 | 82.6 | 33.3 | 305 | 84 | 232 | 88.9 |
| UCP 218 | 85 | 85.7 | 34.1 | 330 | 95 | 247 | 95.2 |
| UCP 219 | 90 | 96 | 39.7 | 356 | 100 | 262 | 101.6 |
| UCP 220 | 100 | 108 | 42 | 390 | 111 | 308 | 115 |
| UCP 305 | 25 | 38 | 15 | 175 | 45 | 132 | 45 |
| UCP 306 | 30 | 43 | 17 | 180 | 50 | 140 | 50 |
| UCP 307 | 35 | 48 | 19 | 210 | 56 | 160 | 56 |
| UCP 308 | 40 | 52 | 19 | 220 | 60 | 170 | 60 |
| UCP 309 | 45 | 57 | 22 | 245 | 67 | 190 | 67 |
| UCP 310 | 50 | 61 | 22 | 275 | 75 | 212 | 75 |
| UCP 311 | 55 | 66 | 25 | 310 | 80 | 236 | 80 |
| UCP 312 | 60 | 71 | 26 | 330 | 85 | 250 | 85 |
| UCP 313 | 65 | 75 | 30 | 340 | 90 | 260 | 90 |
| UCP 314 | 70 | 78 | 33 | 360 | 90 | 280 | 95 |
| UCP 315 | 75 | 85 | 32 | 380 | 100 | 290 | 100 |
| UCP 316 | 80 | 86 | 34 | 400 | 110 | 300 | 106 |
| UCP 317 | 85 | 96 | 40 | 420 | 110 | 320 | 112 |
| UCP 318 | 90 | 96 | 40 | 430 | 110 | 330 | 118 |
| UCP 319 | 95 | 103 | 41 | 470 | 120 | 360 | 125 |
| UCP 320 | 100 | 108 | 42 | 490 | 120 | 380 | 140 |
| UCP 321 | 105 | 112 | 44 | 490 | 120 | 380 | 140 |
| UCP 322 | 110 | 117 | 46 | 520 | 140 | 400 | 150 |
| UCP 324 | 120 | 136 | 51 | 570 | 140 | 450 | 160 |
| UCP 326 | 130 | 135 | 54 | 600 | 140 | 480 | 180 |
| UCP 328 | 140 | 145 | 59 | 620 | 140 | 500 | 200 |
