L217849/L217810D
KMY
L217849/L217810D

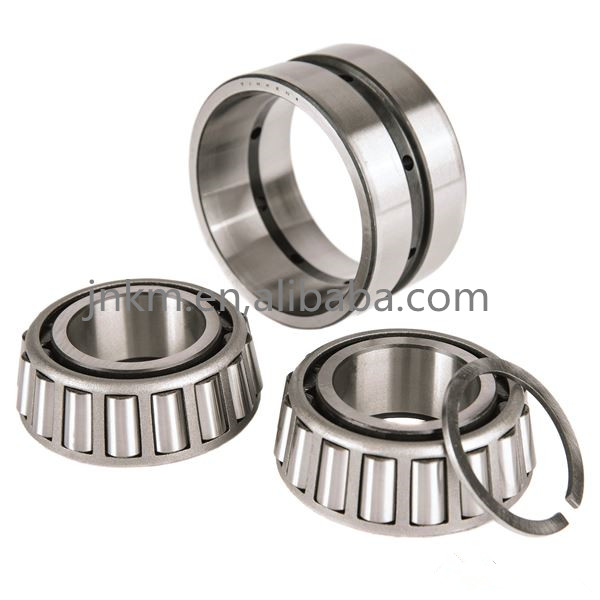

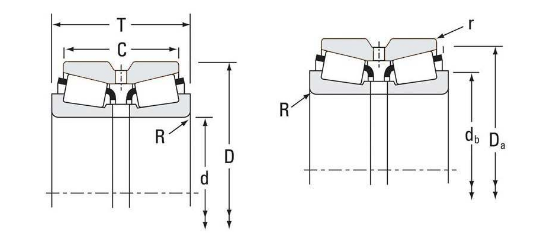

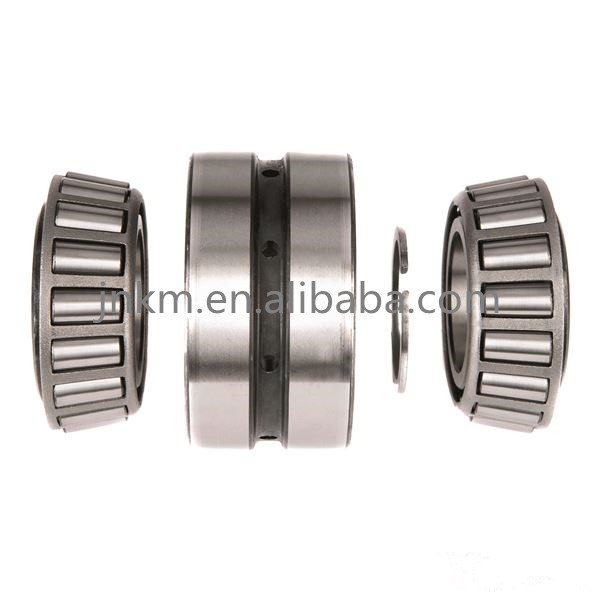

Tapered double outer L217849/L217810D Tapered roller bearing
Specification: L217849/L217810D( A pair of tapered roller bearings)
Series: Tapered roller bearing
Model: L217849/L217810D
Brand: SKF/NTN/INA/IKO/KBC/TIMKEN/OEM...
Dimension: 88.9x123.825x50.795mm/1.618kg
Material: GCr15 chrome steel; Stainless steel
Cage: Steel/Bass/Plastic
Number of tapered roller: Double
If you want to know more details, just contact me.
WhatsApp: +86-17854271903; Email: koyo@chinakmbearing.com
Introduction of Tapered roller bearing:
The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing.
Applications of Tapered roller bearing:
In many applications tapered roller bearings are used in back-to-back pairs so that axial forces can be supported equally in either direction.
Common real world applications are in agriculture, construction and mining equipment, sports robot combat, axle systems, gear box, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, etc.
Jinan Kaiming Bearing Co., Ltd. which is a professional bearing manufacturer and supplier. Our products are of high quality and each product is through strict inspection. Our products are standard, they are not only beautiful in package, but also durable in use. We are willing to cooperate with you.
| Type | Basic Size (mm) | Type | Basic Size (mm) |
| dxDxB | dxDxB | ||
| 11590/11520 | 15.875x42.862x14.288 | 02877/20 | 34.925x73.025x18.288 |
| 09067/09195 | 19.05x49.225x19.05 | 25877/20 | 34.925x73.025x22.225 |
| 12580/20 | 20.638x49.225x19.845 | 3872/20 | 34.925x85.725x30.162 |
| 12649/10 | 21.430x50.005x18.288 | 68149/11 | 34.988x59.974x16.764 |
| 12749/11 | 21.986x45.974x16.637 | 88648/10 | 35.717x72.233x25.4 |
| 12648/10 | 22.225x50.005x18.288 | 25880/21 | 36.487x73.025x24.608 |
| 1780/1729 | 25.4x56.896x19.827 | 2780/20 | 36.487x76.2x25.654 |
| 15101/15243 | 25.4x61.912x20.638 | 69349/10 | 38x63x17 |
| 15103/15245 | 26.157x62x20.638 | 2788/20 | 38.1x79.2x25.654 |
| 44649/10 | 26.988x50.292x14.732 | 27880/20 | 38.1x80.035x23.698 |
| 15580/15523 | 26.988x60.325x17.462 | 801349/10 | 40.483x82.55x28.575 |
| 15112/15245 | 28.575x62x20.638 | 300849/11 | 40.988x67.975x18 |
| 02474/20 | 28.575x68.262x22.225 | 18590/20 | 41.275x73.025x17.462 |
| 45449/10 | 29x50.292x14.224 | 501349/10 | 41.275x73.431x19.812 |
| 151174/245 | 29.987x62x20.638 | 501349/14 | 41.275x73.431x19.812 |
| 88540/13 | 30x72x27.738 | 11162/111315 | 41.275x80x17.384 |
| 86649/10 | 30.162x64.292x21.433 | 25578/20 | 42.862x82.931x25.4 |
| 15120/245 | 30.213x62x20.638 | 25580/20 | 44.45x82.931x25.4 |
| 67048/10 | 31.75x59.131x16.764 | 25582/20 | 44.45x82.931x25.4 |
| 15123/245 | 31.75x62x19.05 | 355/354 | 44.45x85x21.692 |
| 15125/245 | 31.75x62x20.638 | 801349/10 | 44.45x88.9x29.37 |
| 02475/20 | 31.75x68.262x23.812 | 527/522 | 44.45x101.6x36.068 |
| 88048/10 | 33.338x68.262x22.225 | 460/453 | 44.45x104.775x29.317 |
| 48548/10 | 34.925x65.088x22.225 | 367/362 | 45x88.9x22.25 |
Tapered double outer L217849/L217810D Tapered roller bearing
Specification: L217849/L217810D( A pair of tapered roller bearings)
Series: Tapered roller bearing
Model: L217849/L217810D
Brand: SKF/NTN/INA/IKO/KBC/TIMKEN/OEM...
Dimension: 88.9x123.825x50.795mm/1.618kg
Material: GCr15 chrome steel; Stainless steel
Cage: Steel/Bass/Plastic
Number of tapered roller: Double
If you want to know more details, just contact me.
WhatsApp: +86-17854271903; Email: koyo@chinakmbearing.com
Introduction of Tapered roller bearing:
The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing.
Applications of Tapered roller bearing:
In many applications tapered roller bearings are used in back-to-back pairs so that axial forces can be supported equally in either direction.
Common real world applications are in agriculture, construction and mining equipment, sports robot combat, axle systems, gear box, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, etc.
Jinan Kaiming Bearing Co., Ltd. which is a professional bearing manufacturer and supplier. Our products are of high quality and each product is through strict inspection. Our products are standard, they are not only beautiful in package, but also durable in use. We are willing to cooperate with you.
