| Quantity: | |
|---|---|
Quick Details
Structure: Taper
Type: Roller
Brand Name: Koyo,NSK,TIMKEN
Bore Size: 0 - 130 mm
Outside Diameter: 0 - 200 mm
Model Number: 352026
Precision Rating: P0/P2/P4/P5/P6
Seals Type: open
Number of Row: Single Row
Place of Origin: Shandong, China (Mainland)
HS code: 8482102000
Material: GCr15,Carbon steel
Noise grades: z1,z2,z3,z4
Weight: 9.72kg
Width: 95mm

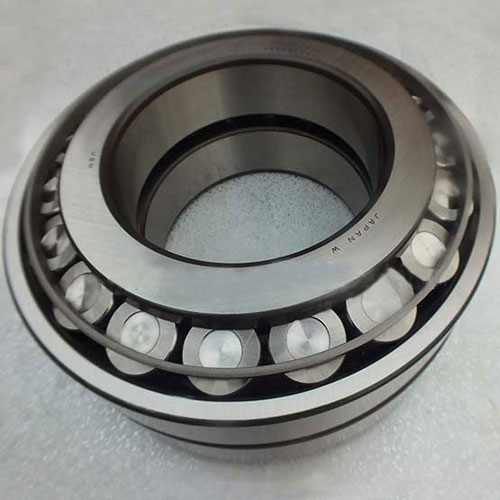

Taper Roller Bearing 352026:
Double row or two-row tapered roller bearings feature double cups and two single
cones. They are available in a variety of configurations for general industrial and
automotive applications. These bearings are divided into the TDO type which has
one double cup and two single-row cones, and the TDI type which has two
single-row cups and one double cone. Both accommodate radial and axial loading
in both directions. These two also carry moment loads, however, the TDO type is
superior to the TDI type, because the distance between load centers is longer in
the TDO type. The spacer of the TDO type, or the TDI type, pre-adjusts the
internal clearance to provide proper operating clearance after mounting.
| Products Name | Wholesale Taper Roller Bearings 352026 Roller Bearings Size 130X200X95mm |
| Ring material | Chrome Steel, Carbon Steel, Stainless Steel |
| Material: | GCr15 GCr15SiMn |
| Model NO. | 32915 |
| I.D.: | 130 mm |
| O.D.: | 200 mm |
| Width: | 95 mm |
| Row Number | Single Row, Two Rows |
| Precision | P0,P6,P5,P4,P2 |
| Clearance: | C0 |
| Application: | Mine machine, port hoisting machine, port transfer equipment, crane;excavator, concrete machine,paper machine, weave machine, steel and electronic plants etc. machines and equipments. |
