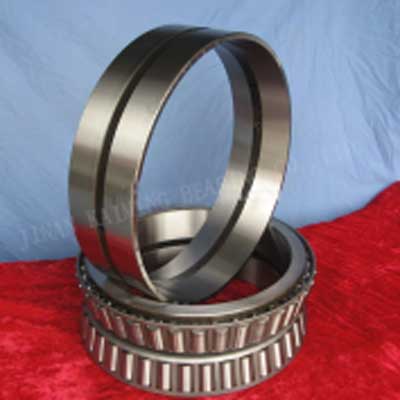

TIMKEN double rows tapered roller bearing 3519/800
Bore Size: 800mm
Outside Diameter: 1060mm
Model Number: 3519/800
Weight: 606kgs
Type of goods: tapered roller bearing
Description:
Double row tapered roller bearing is classified into two types: capped and open.
The former equips two raceway outer rings and two single raceway inner rings. The latter equips two
raceway outer rings and one double raceway inner ring. Both of them can bear radial load and double row axial load.
In order to make bearing having required internal clearance after being installed, its inner/outer spacer are thinned previously.
| Bearing Number | Principal dimensions(mm) | Basic Load rating | Limiting Speed(r/min) | Weight(KG) | ||||||||
| d | D | T | C | B | Rsmin | rsmin | Cr | Cor | Grease | Oil | ||
| 3519/500 | 500 | 670 | 180 | 130 | 78 | 5 | 1.5 | 2360 | 6700 | 410 | 540 | 158 |
| 3510/500 | 500 | 720 | 236 | 180 | 100 | 6 | 2.5 | 3250 | 8150 | 350 | 460 | 276 |
| 332171 | 510.13 | 800 | 285 | 100 | 285 | 5 | 8 | 4950 | 12500 | 330 | 430 | 532 |
| 3519/530 | 530 | 710 | 190 | 360 | 87 | 5 | 15.5 | 2625 | 7380 | 320 | 420 | 185 |
| 3510/560 | 560 | 820 | 260 | 185 | 115 | 4 | 2.2 | 4485 | 9820 | 310 | 410 | 416 |
| 3519/600 | 600 | 800 | 205 | 156 | 90 | 5 | 1.5 | 3100 | 9050 | 290 | 390 | 247 |
| 524241 | 635 | 939.8 | 304.8 | 110 | 304.8 | 3.3 | 6.4 | 5400 | 9400 | 280 | 380 | 721 |
| 3519/710 | 710 | 950 | 240 | 175 | 106 | 6 | 2.2 | 4610 | 11755 | 250 | 320 | 445 |
| 3519/750X2 | 750 | 1000 | 255 | 190 | 112 | 6 | 2.5 | 4900 | 15100 | 230 | 310 | 535 |
| 3519/750 | 750 | 1000 | 264 | 194 | 112 | 6 | 2.5 | 1900 | 15100 | 230 | 310 | 546 |
| 3519/800 | 800 | 1060 | 270 | 204 | 115 | 6 | 2.5 | 6250 | 15200 | 220 | 300 | 606 |
| 3519/850 | 850 | 1120 | 268 | 188 | 118 | 6 | 2.5 | 6340 | 17500 | 210 | 270 | 652.6 |
| 3519/900 | 900 | 1180 | 275 | 205 | 122 | 6 | 2.5 | 6950 | 21300 | 200 | 260 | 763 |
| 3519/1120 | 1120 | 1460 | 335 | 250 | 158 | 7.5 | 3 | 9000 | 29500 | 160 | 210 | 1350 |
