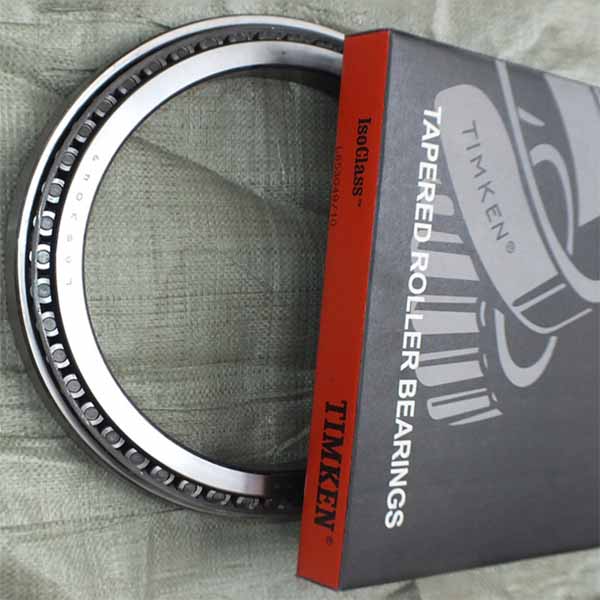

TIMKEN bearing taper roller bearing 32907
Bore Size: 0 - 35 mm
Outside Diameter: 0 - 55 mm
Model Number: 32907
Items: TIMKEN bearing
Type of goods: taper roller bearing
Width: 14mm
Series models specification:
| Bearing models | Dimensions | Limited speed rating | Load ratings | Appro weight(kg) | ||||
| ID(mm) | OD(mm) | Thickness | Grease | Oil | Dynamic(N) | Static(N) | ||
| 32907 | 35 | 55 | 14 | 6600 | 8800 | 25700 | 34700 | 0.114 |
| 32908 | 40 | 62 | 15 | 5900 | 7800 | 31600 | 46100 | 0.155 |
| 32909 | 45 | 68 | 15 | 5300 | 7100 | 32000 | 48400 | 0.18 |
| 32910 | 50 | 72 | 15 | 4900 | 6600 | 36900 | 56100 | 0.181 |
| 32911 | 55 | 80 | 17 | 4400 | 5900 | 41500 | 66700 | 0.262 |
| 32912 | 60 | 85 | 17 | 4100 | 5200 | 46100 | 73000 | 0.279 |
| 32913 | 65 | 90 | 17 | 3900 | 4900 | 45400 | 73200 | 0.297 |
| 32914 | 70 | 100 | 20 | 3500 | 4500 | 70800 | 114700 | 0.481 |
| 32915 | 75 | 105 | 20 | 3300 | 4200 | 78200 | 124700 | 0.502 |
| 32916 | 80 | 110 | 20 | 3200 | 4000 | 79300 | 129000 | 0.528 |
| 32917 | 85 | 120 | 23 | 2900 | 3700 | 96900 | 164100 | 0.765 |
| 32918 | 90 | 125 | 23 | 2800 | 3500 | 95800 | 164400 | 0.799 |
| 32919 | 95 | 130 | 23 | 2700 | 3400 | 97100 | 169800 | 0.832 |
| 32920 | 100 | 140 | 25 | 2500 | 3200 | 126600 | 218500 | 1.149 |
TIMKEN bearing taper roller bearing 32907
Bore Size: 0 - 35 mm
Outside Diameter: 0 - 55 mm
Model Number: 32907
Items: TIMKEN bearing
Type of goods: taper roller bearing
Width: 14mm
Series models specification:
| Bearing models | Dimensions | Limited speed rating | Load ratings | Appro weight(kg) | ||||
| ID(mm) | OD(mm) | Thickness | Grease | Oil | Dynamic(N) | Static(N) | ||
| 32907 | 35 | 55 | 14 | 6600 | 8800 | 25700 | 34700 | 0.114 |
| 32908 | 40 | 62 | 15 | 5900 | 7800 | 31600 | 46100 | 0.155 |
| 32909 | 45 | 68 | 15 | 5300 | 7100 | 32000 | 48400 | 0.18 |
| 32910 | 50 | 72 | 15 | 4900 | 6600 | 36900 | 56100 | 0.181 |
| 32911 | 55 | 80 | 17 | 4400 | 5900 | 41500 | 66700 | 0.262 |
| 32912 | 60 | 85 | 17 | 4100 | 5200 | 46100 | 73000 | 0.279 |
| 32913 | 65 | 90 | 17 | 3900 | 4900 | 45400 | 73200 | 0.297 |
| 32914 | 70 | 100 | 20 | 3500 | 4500 | 70800 | 114700 | 0.481 |
| 32915 | 75 | 105 | 20 | 3300 | 4200 | 78200 | 124700 | 0.502 |
| 32916 | 80 | 110 | 20 | 3200 | 4000 | 79300 | 129000 | 0.528 |
| 32917 | 85 | 120 | 23 | 2900 | 3700 | 96900 | 164100 | 0.765 |
| 32918 | 90 | 125 | 23 | 2800 | 3500 | 95800 | 164400 | 0.799 |
| 32919 | 95 | 130 | 23 | 2700 | 3400 | 97100 | 169800 | 0.832 |
| 32920 | 100 | 140 | 25 | 2500 | 3200 | 126600 | 218500 | 1.149 |
