Brand Name:TIMKEN NTN SKF
Bore Size: 0 - 130 mm
Outside Diameter: 0 - 230 mm
Model Number: 22226 CCK/W33

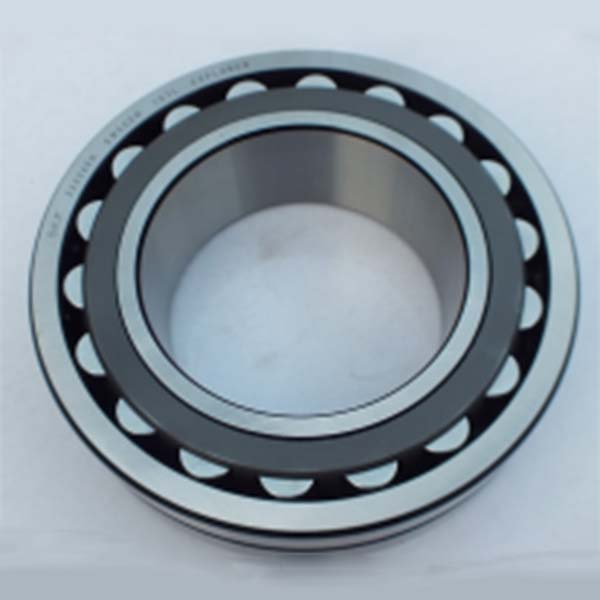

Goods description: Spherical roller bearing 22226
Weight: 11.2kgs
We can offer the following variants:
1. Single Row type – 202 series (details available on request)
2. Double Row type – 213, 222, 223, 230, 231, 232, 239, 240, 241 Series
3. Large product range from 25mm ID to 850mm ID
4. with C2, CN, C3 and C4 radial clearance
5. Pressed steel or single piece and split type machined brass cage
6. With oil groove and oil hole (W33) design
7. Standard precision grade P0 and higher precision grade P6.
8. Spherical plain type bearings – GE Series in open and 2RS type design.
Technical parameters:
| Item | Spherical roller bearing 22226CCK/W33 |
| Dimension | 130 ID X230 OD |
| Width | 64mm |
| Tolerance codes | ABEC-1, ABEC-3, ABEC-5, ABEC-7 |
| Vibration level codes | V4, V3, V2, V1 |
| Internal clearance codes | C2, C3, C4, C5 |
| Retainer | PTFE, nylon, PEEK or stainless steel |
| Ball bearings material | AISI52100, AISI440C, AISI304, AISI316, ceramic |
| Number of Row | Single Row, Double Row |
| Guarantee | 1 year |
| Package | 1.Single box packing, then in carton then in Pallet. 2.Standard export packing. 3. According customer demand. |
