Brand Name: TIMKEN NSK
Bore Size: 0 - 170 mm
Outside Diameter: 0 - 340 mm
Model Number: 29434
Weight: 44.3kgs

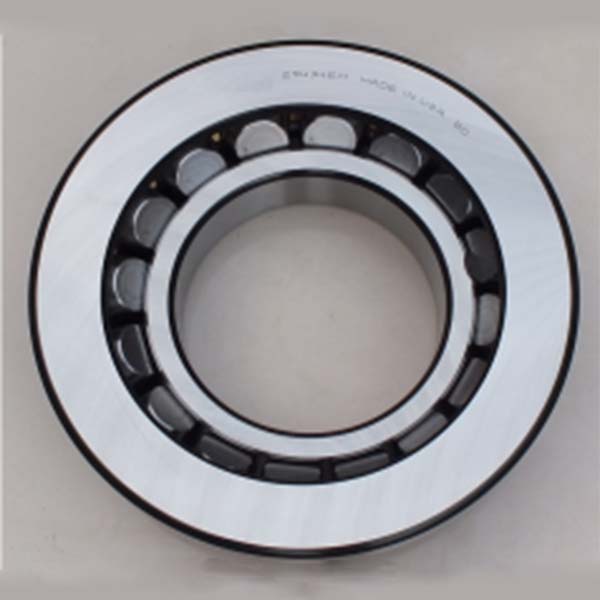

Description: thrust roller bearing 29434
Thrust Taper Roller Bearing Product features:
The 29000 type bearings stick for the unsymmetrical spherical roller, can reduce the roller and the raceway in the work of sliding, and the roller length, diameter, and roller number, high load capacity, usually by oil lubrication, individual low speed can be used for grease lubrication. In the design selection, priority should be given to the selection.
Technical specifications:
| (d) Bore Diameter |
| 170 mm |
|
| ||
| (D) Outer Diameter |
| 340 mm |
|
| ||
| (T) Height |
| 103 mm |
|
| ||
| (C) Dynamic Load |
| 2020000 N |
| (Co) Static Load |
| 6550000 N |
| (Grease) Lubrication Speed |
| 700 r/min |
| (Oil) Lubrication Speed |
| 950 r/min |
| Mass |
| 44.5 kg |
|
| ||
