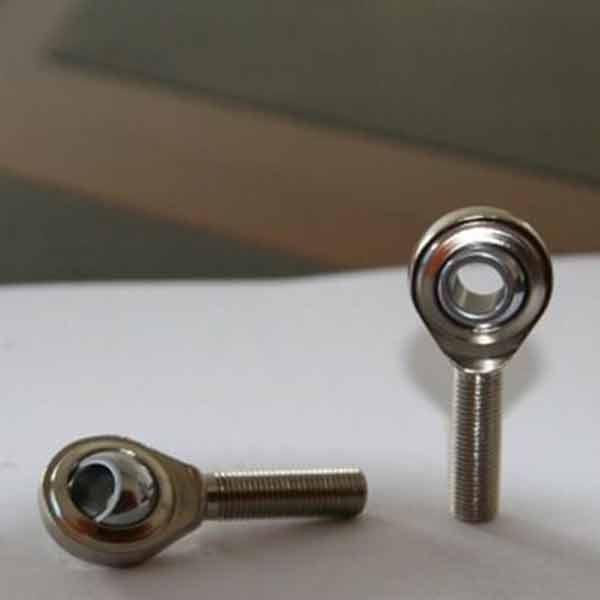

Sweden Maintenance-free rod ends with male thread SA17C
Original Sweden SA17C have right-hand / male threads according to ISO 965/1:1980.These maintenance-free rod ends have special sliding layers of modern dry sliding materials characterised by low friction. They find application above all where long service live is required without maintenance.
Technical data of Original Sweden SA17C
Inside diameter=17 mm
Outside diameter=47 mm
Width=14 mm
G: M16
Weight=0.19 kg
Angle of tilt ± 10 degrees
Basic dynamic load rating=22.4 kN
Basic static load rating=42.5 kN
