812/530

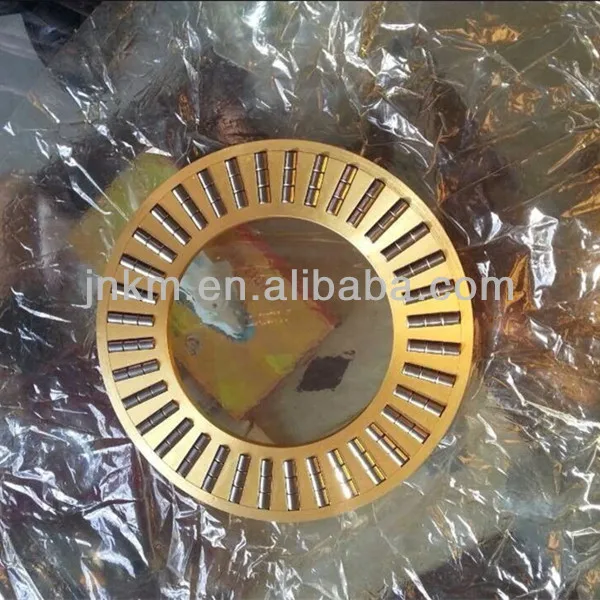

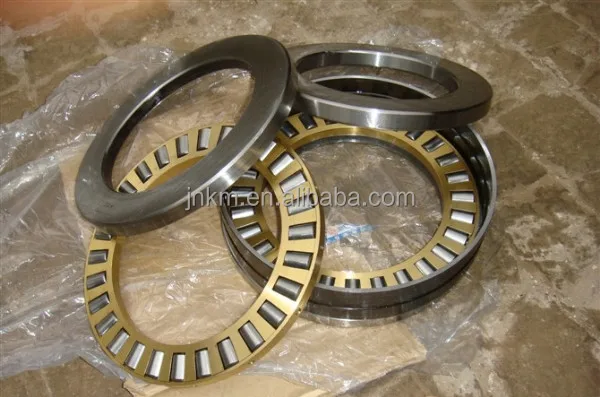

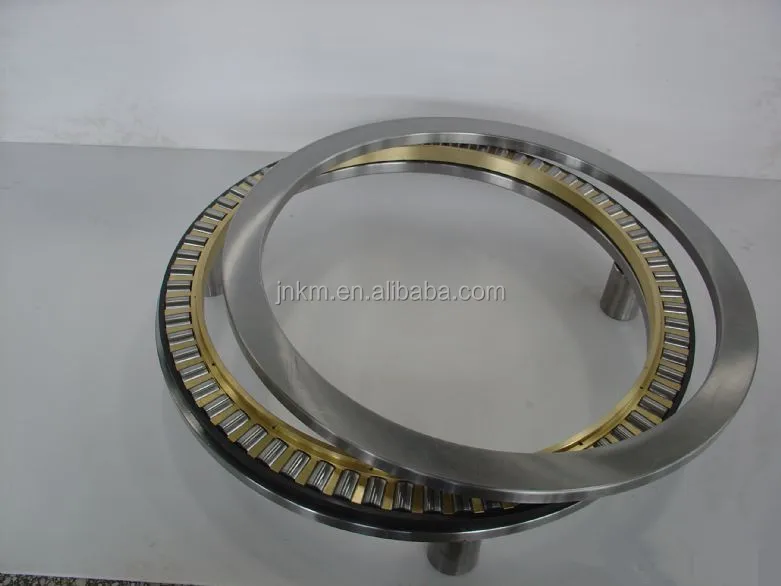

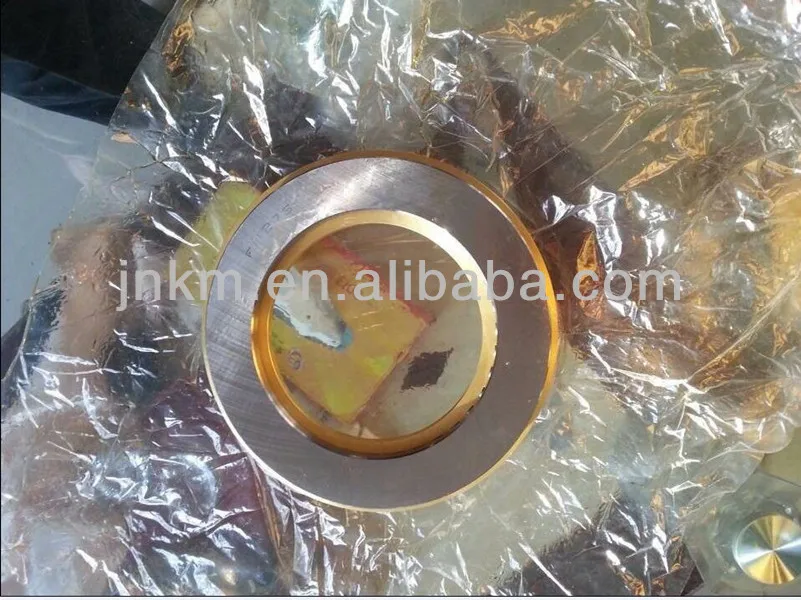

Super large Axial cylindrical roller bearings for forging machine 812/530
Super large 812/530 Cylindrical roller thrust bearings are suitable for arrangements that have to support heavy axial loads. Furthermore, they are relatively insensitive to shock loads, are very stiff and require little axial space.
Technical data of 812/530
ID: 530 mm
OD: 710 mm
Height: 140 mm
Weight; 154 kg
Basic dynamic load rating: 3650 kN
Basic static load rating: 18600 kN
Reference speed: 180 rpm
Limiting speed: 360 rpm
Cylindrical roller thrust bearings catalogue
Part No. | ID mm | OD mm | Thk mm | Wt.kg |
89184 M | 420 | 500 | 48 | 18,0 |
81184 M | 420 | 500 | 65 | 24,0 |
81284 M | 420 | 580 | 130 | 95,5 |
BGSB 358346 | 431 | 571 | 89 | 68,0 |
BGSB 358469 | 431,8 | 571,5 | 88,9 | 66,5 |
89188 M | 440 | 540 | 60 | 30,0 |
81188 M | 440 | 540 | 80 | 39,5 |
81288 M | 440 | 600 | 130 | 110 |
89192 M | 460 | 560 | 60 | 31,5 |
81192 M | 460 | 560 | 80 | 41,0 |
81292 M | 460 | 620 | 130 | 118 |
89196 M | 480 | 580 | 60 | 32,5 |
81196 M | 480 | 580 | 80 | 43,0 |
81296 M | 480 | 650 | 135 | 128 |
475619 | 482,6 | 673,1 | 114,3 | 140 |
891/500 M | 500 | 600 | 60 | 34,0 |
811/500 M | 500 | 600 | 80 | 44,0 |
812/500 M | 500 | 670 | 135 | 133 |
BGSB 358371 | 508 | 762 | 139,7 | 40,5 |
BGSB 358363 | 530 | 590 | 36 | 13,0 |
891/530 M | 530 | 640 | 67 | 44,0 |
811/530 M | 530 | 640 | 85 | 55,5 |
358060 | 530 | 710 | 120 | 135 |
812/530 M | 530 | 710 | 140 | 154 |
BGSB 358221 | 560 | 665 | 85 | 60,5 |
