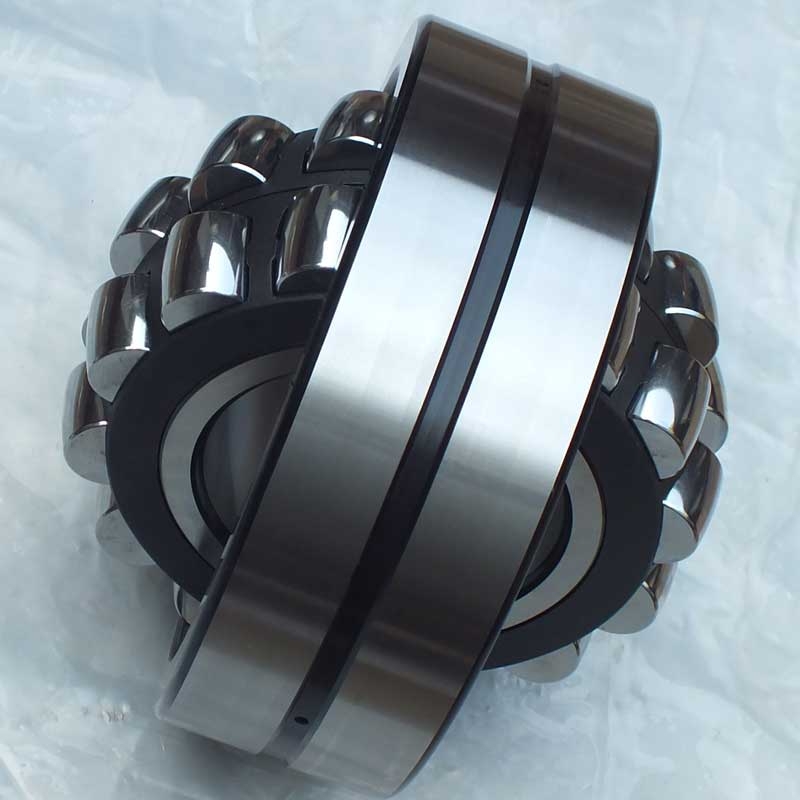

Spherical roller bearing 22330 CCW33 C3 from China

The bearing has a guide ring that is centred on the inner ring with two window-type steel cages a C3 clearance which is Greater than the Normal radial internal clearance an annular groove and three lubrication holes in the outer ring.
Quantity:

Spherical roller bearing 22330 CCW33 C3 from China

Quick Details

Structure: Spherical

Type: Roller

Brand Name: kmy

Bore Size: 150 mm

Outside Diameter: 320 mm

Model Number: 22330 CCW33 C3

Precision Rating: P2 P4 P5 P6 P0

Seals Type: open

Number of Row: Double Row

Place of Origin: Sweden

height: 108mm

material: bearing steel

General Information
Bore Diameter: 150 mm
Outside Diameter: 320 mm
Overall Width: 108 mm
Bore Type: Round
Outer Ring Type: Not Split
Lubrication Hole Type: Lubrication Groove & Holes
Internal Clearance: C3
Closure Type: Open
Operating Temperature Range: Maximum of +390 °F
Dynamic Load Capacity: 1460 kN
Static Load Capacity: 1760 kN
Maximum RPM: 2000 RPM
Cage Material: Steel
Bearing Material: Steel
Cage Type: Inner Ring Guided
Precision Rating: Not Rated
Finish/Coating: Uncoated
Outer Ring Width: 108 mm
Fillet Radius: 3 mm
Series:

223


Spherical roller bearing 22330 CCW33 C3
