Spherical Roller Bearing 22312 from top-rated Trade Assurance suppliers

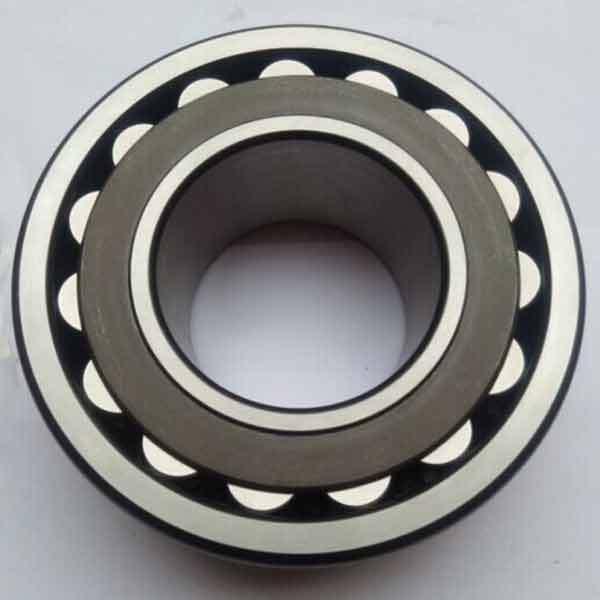

Spherical roller bearing with taper bore and annular groove with three lubrication holes in outer ring 60mm inside x 130mm outside x 46mm width
Spherical roller bearings are self-aligning bearings that are consequently insensitive to misalignment of the shaft, they have two rows of rollers so they are able to carry heavy radial loads, all sizes are available with cylindrical or tapered bores.
Spherical Roller bearings are designed to carry heavy loads, even under misalignment or shaft deflection. Spherical Roller bearings can also handle axial loading in either direction and heavy shock loads. Available with a cylindrical or a tapered bore for mounting with or without a sleeve adapter. Available with many internal clearance (C2 to C4) and retainer options. Available bore dimension range is 20mm to 900mm.
1) CA: Integral brass cage, double row symmetrical rollers, inner ring ride
2) MA: Integral brass cage, double row symmetrical rollers, outer ring ride
3) MB: Two piece brass cage, double row asymmetrical rollers, inner ring ride
4) CC: Two piece steel cage, double row symmetrical rollers, inner ring ride
5) CTN1: Double row symmetrical rollers, nylon cage
6) K: Tapered bore bearing, the taper is 1: 12
7) K30: Tapered bore bearing, the taper is 1: 30
8) W33: With lubrication groove in outer ring, with three oil holes
Common Options:
· E-- Extra Capacity style
· J-- Steel cage
· M-- Machined brass cage
· K-- 1:12 Tapered Bore
· C2-- tight internal clearance
· C0-- Normal Clearance
· C3-- Greater than normal Clearance
· T41A-- Shaker Screen style
