Single lip shroud seals agricultural bearing 205KRR2 deep groove bearing

Single lip shroud seals agricultural bearing 205KRR2 deep groove bearing

Quick Details

Structure: Deep Groove

Type: Ball

Brand Name: NSK IKO KOYO TIMKEN UBC LYC ZWZ

Bore Size: 22.225 mm

Outside Diameter: 52 mm

Model Number: 205KRR2

Precision Rating: p2 p4 p5 p6 p0

Seals Type: open zz 2rs

Number of Row: Single Row

Place of Origin: Sweden

structure: deep groove

type: ball

material: bearing steel

H.S CODE: 8482012000

205KRR2, HPC014GP, 1AH05-7/8 Special Ag Bearing

SKU: 205KRR2
This bearing is also known as:
FAFNIR: 205KRR2
BCA: HPC014GP
Link-Belt: 14KB205N
NTN: 1AH05-7/8
John Deere: AA28271, AE29876
Ford: 166598
NH: 49436
MF: 842696M1
White: 507138

DIMENSIONS:
BORE: 7/8" Hex
O.D. 2.04" Flat
IR Width: 1"
OR Width: .59"

Hex bore bearing for John Deere 7000 - 7300 Planters.

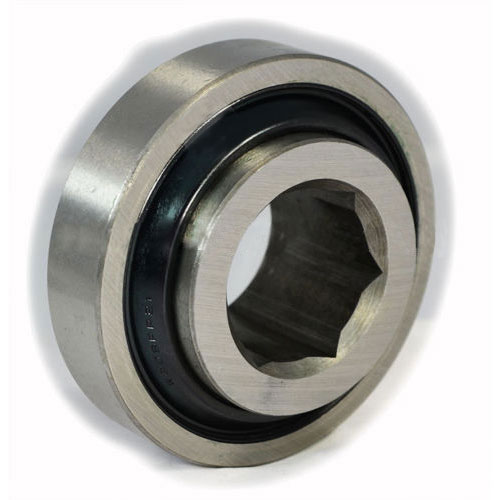

205KRR2 Single Lip Shroud Seals, 205KRR2 Bearing is a hex bore, it Used in applications where collars, set scews, or any other locking devices are not required. 205KRR2 is a close fitting metal shield backed by a molded rubber seal, bearing is two single lip shrud seals, bearing incorporates a standard conrad type bearing with a special heavy contact seal, this allows use in heavily contaminnated areas.

•Item: 205KRR2 Agricultural Bearing
•Type: Agricultural Peer Bearing
•Shaft Size: 7/8" inch
•Inner Diameter: 7/8" Inch
•Outer Diameter: 2 3/64" inch
•Inner Ring Width: 19/32" inch
•Outer Ring Width: 1" inch
•Dynamic Load Rating: 4,370
•Static Load Rating: 2,320
