Self-aligning ball bearings steel ball bearing 2200

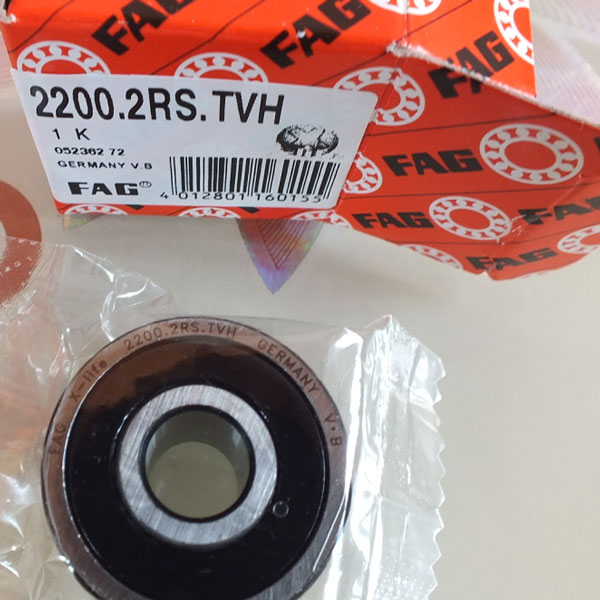

2200-2RS-TVH Self-aligning ball bearings with seals at both sides are cylindrical bore design. Their sheet steel reinforced seals are made of oil and wear-resistant acrylonitrile-butadiene rubber (NBR). Sealed 2200-2RS-TVH bearings are lubricated as standard with grease, that has good rust inhibiting properties.
Technical data of 2200-2RS-TVH
ID: 10 mm
OD: 30 mm
Width: 14 mm
Weight; 0.047 kg
Basic dynamic load rating: 5.4 kN
Basic static load rating: 1.2 kN
Limiting speed for grease lub.: 15000 rpm
Part sealed type Self-aligning ball bearings catalogu
| Part No. | ID mm | OD mm | Thk. mm |
| 2200 2RS | 10 | 30 | 14 |
| 2300 2RS | 10 | 35 | 17 |
| 2201 2RS | 12 | 32 | 14 |
| 2301 2RS | 12 | 37 | 17 |
| 2202 2RS | 15 | 35 | 14 |
| 2302 2RS | 15 | 42 | 17 |
| 2203 2RS | 17 | 40 | 16 |
| 2303 2RS | 17 | 47 | 19 |
| 2204 2RS | 20 | 47 | 18 |
| 2304 2RS | 20 | 52 | 21 |
| 2205 2RS | 25 | 52 | 18 |
| 2305 2RS | 25 | 62 | 24 |
| 2206 2RS | 30 | 62 | 20 |
| 2306 2RS | 30 | 72 | 27 |
| 2207 2RS | 35 | 72 | 23 |
| 2307 2RS | 35 | 80 | 31 |
| 2208 2RS | 40 | 80 | 23 |
| 2308 2RS | 40 | 90 | 33 |
| 2209 2RS | 45 | 85 | 23 |
| 2309 2RS | 45 | 100 | 36 |
| 2210 2RS | 50 | 90 | 23 |
| 2310 2RS | 50 | 110 | 40 |
| 2211 2RS | 55 | 100 | 25 |
| 2311 2RS | 55 | 120 | 43 |
| 2212 2RS | 60 | 110 | 28 |
| 2312 2RS | 60 | 130 | 46 |
| 2213 2RS | 65 | 120 | 31 |
| 2313 2RS | 65 | 140 | 48 |
| 2214 2RS | 70 | 125 | 31 |
| 2314 2RS | 70 | 150 | 51 |
| 2215 2RS | 75 | 130 | 31 |
| 2315 2RS | 75 | 160 | 55 |
| 2216 2RS | 80 | 140 | 33 |
| 2316 2RS | 80 | 170 | 58 |
| 2217 2RS | 85 | 150 | 36 |
| 2218 2RS | 90 | 160 | 40 |
| 2219 2RS | 95 | 170 | 43 |
| 2220 2RS | 100 | 180 | 46 |
| 2221 2RS | 105 | 190 | 50 |
| 2222 2RS | 110 | 200 | 53 |
Koyo 2200 2RS Self-aligning ball bearings with seals are lubricated for life and require no maintenance. Users should note that they should not be heated above 80 °C before mounting and should not be washed.
