SKF bearing 6212 C3 China hot sell single row deep groove ball bearing 6212
Specification: 6212 C3 deep groove ball bearing
Model: 6212
Structure: Deep groove
Series: Ball bearing
Size: 60*110*22mm/ 0.79kg
Number of row: Single
Calculation data
Dynamic load rating: 55.3KN
Static load rating: 36KN
Reference speed: 13ooor/min
Limiting speed: 8000r/min
Contact: WhatsApp: +86-17854271903; Email: koyo@chinakmbearing.com
Classification of Deep groove ball bearings: Single row deep groove ball bearing; Double row deep groove ball bearing and Four-row deep groove ball bearing.
Applications of deep groove ball bearing: They are commonly used in electric motors and in household appliances, car motors, office machinery, automation control, and garden and household tools. They have deep raceway grooves and their race dimensions are close to the dimensions of the balls that run inside.

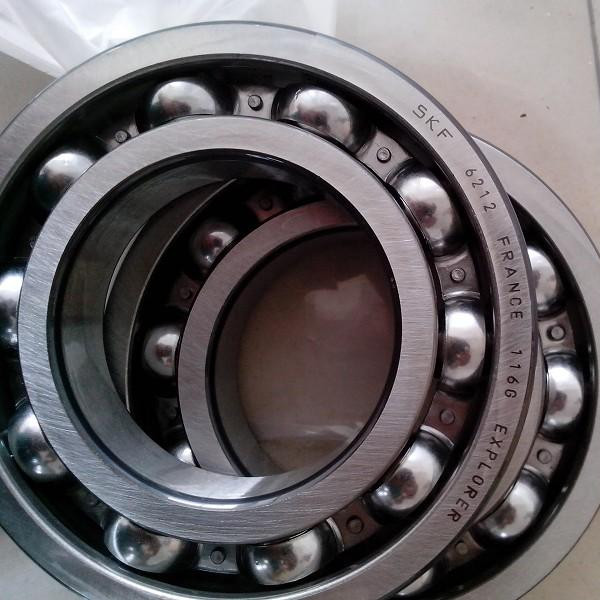

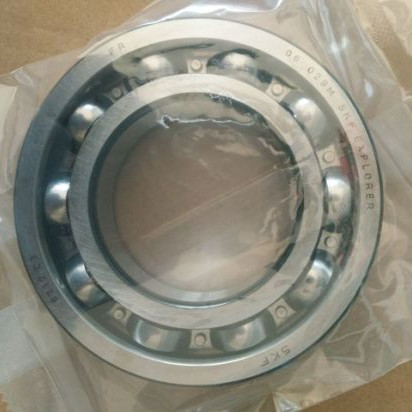

Product picture
Deep groove ball bearing
Type | Basic Size (mm) | Type | Basic Size (mm) | Type | Basic Size (mm) |
dxDxB | dxDxB | dxDxB | |||
6000 | 10x26x8 | 6200 | 10x30x9 | 6300 | 10x35x11 |
6001 | 12x28x8 | 6201 | 12x32x10 | 6301 | 12x37x12 |
6002 | 15x32x9 | 6202 | 15x35x11 | 6302 | 15x42x13 |
6003 | 17x35x10 | 6203 | 17x40x12 | 6303 | 17x47x14 |
6004 | 20x42x12 | 6204 | 20x47x14 | 6304 | 20x52x15 |
6005 | 25x47x12 | 6205 | 25x52x15 | 6305 | 25x62x17 |
6006 | 30x55x13 | 6206 | 30x62x16 | 6306 | 30x72x19 |
6007 | 35x62x14 | 6207 | 35x72x17 | 6307 | 35x80x21 |
6008 | 40x68x15 | 6208 | 40x80x18 | 6308 | 40x90x23 |
6009 | 45x75x16 | 6209 | 45x85x19 | 6309 | 45x100x25 |
6010 | 50x80x16 | 6210 | 50x90x20 | 6310 | 50x110x27 |
6011 | 55x90x18 | 6211 | 55x100x21 | 6311 | 55x120x29 |
6012 | 60x95x18 | 6212 | 60x110x22 | 6312 | 60x130x31 |
6013 | 65x100x18 | 6213 | 60x120x23 | 6313 | 65x140x33 |
6014 | 70x110x20 | 6214 | 70x125x24 | 6314 | 70x150x35 |
6015 | 75x115x20 | 6215 | 75x130x25 | 6315 | 75x160x37 |
6016 | 80x125x22 | 6216 | 80x140x26 | 6316 | 80x170x39 |
6017 | 85x130x22 | 6217 | 85x150x28 | 6317 | 85x180x41 |
6018 | 90x140x24 | 6218 | 90x160x30 | 6318 | 90x190x43 |
6019 | 95x145x24 | 6219 | 95x170x32 | 6319 | 95x200x45 |
6020 | 100x150x24 | 6220 | 100x180x34 | 6320 | 100x215x47 |
6021 | 105x160x26 | 6221 | 105x190x36 | 6321 | 105x225x49 |
6022 | 110x170x28 | 6222 | 110x200x38 | 6322 | 110x240x50 |
6024 | 120x180x28 | 6224 | 120x215x40 | 6324 | 120x260x55 |
6026 | 130x200x33 | 6226 | 130x230x40 | 6326 | 130x280x58 |
6028 | 140x210x33 | 6228 | 140x250x42 | 6328 | 140x300x62 |
6030 | 150x225x35 | 6230 | 150x270x45 | 6330 | 150x320x65 |
