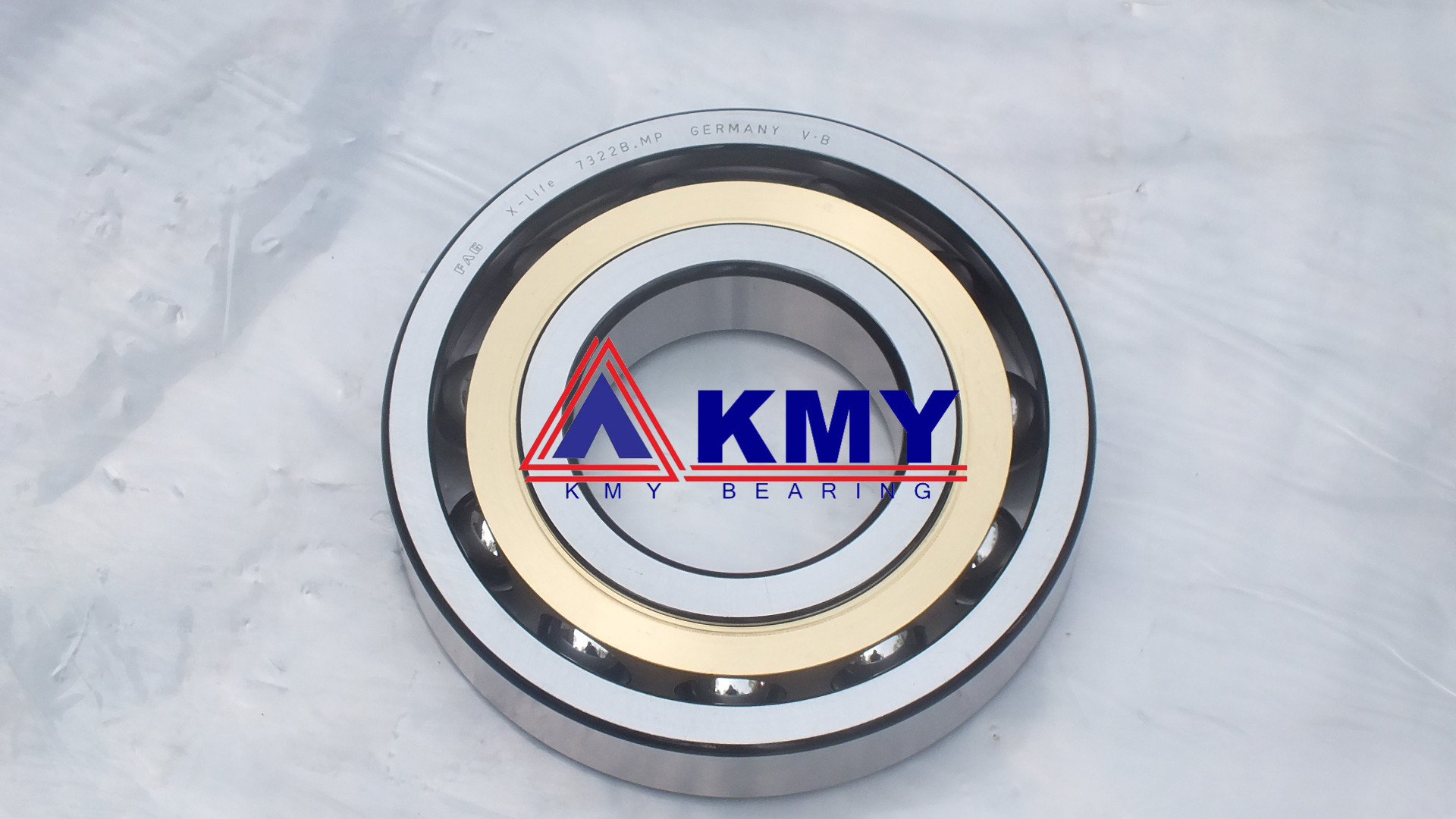

SKF Single row angular contact ball bearing 7322 for pumps
Single row angular contact ball bearing 7322 for pumps
Description:
Model number : | 7322 BECBM |
Type: | angular contact ball bearing |
Brand : | SKF ,TIMKEN ,NSK,NTN ,FAG ,KOYO available |
Size: | 100x240x50mm |
Cage: | Brass cage |
Weight: | 10.0 kg |
Port : | QingDao , GuangZhou |
Package : | single color box |
Delivery time : | 3-5 days after payment |
Payment term : | T/T,L/C,Western union ,MoneyGram |
Features:
Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis
Application:
Angular contact bearings are ideal for use in gearboxes, pumps, electric motors, and clutches or other high-speed applications. They are commonly used in the Materials Handling, Machine Tool, Steel Mill, and Wind Energy industries.
Other models:
d | D | B | weight/kg | Model number |
110 | 170 | 28 | 1.95 | 7022 |
110 | 200 | 38 | 4. 55 | 7222 |
110 | 240 | 50 | 10.5 | 7322 |
120 | 180 | 28 | 2. 1 | 7024 |
120 | 215 | 40 | 5.4 | 7224 |
130 | 200 | 33 | 3. 2 | 7026 |
130 | 230 | 40 | 6. 25 | 7226 |
140 | 210 | 33 | 3. 62 | 7028 |
140 | 250 | 42 | 9. 36 | 7228 |
140 | 300 | 62 | 22. 44 | 7328 |
150 | 225 | 35 | 4. 83 | 7030 |
160 | 290 | 48 | 14. 5 | 7232 |
170 | 260 | 42 | 8.25 | 7034 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
FAQ
Q:What’s your after-sales service and warranty?
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customized bearings,housings , oil seals , with different size and packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. according to the production situation .
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes, we can offer free samples for testing before bulk order , Sample charge will be refundable upon confirmation of the order.
Q:How to place orders?
1. contact us to confirm the model, brand and quantity, price ,consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
