Rod ends with female thread requiring maintenance SI 30 ES
Technical data of SI 30 ES
Inside diameter=30 mm
Outside diameter=75 mm
Width=22 mm
G: M30 x 2
Weight=1 kg
Angle of tilt ± 6 degrees
Basic dynamic load rating=62 kN
Basic static load rating=116 kN

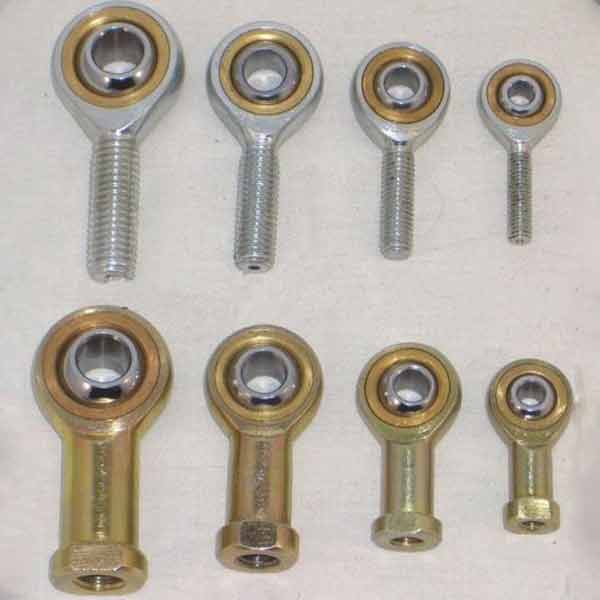

SI 30 ES Rod ends requiring maintenance consist of an eye-shaped head with integral shank which forms a housing for a spherical plain bearing. They are right-hand female (internal) threads according to ISO 965/1:1980. SI 30 ES Rod ends are very resistant to wear and therefore particularly suitable for applications where heavy loads of alternating direction have to be accommodated.
