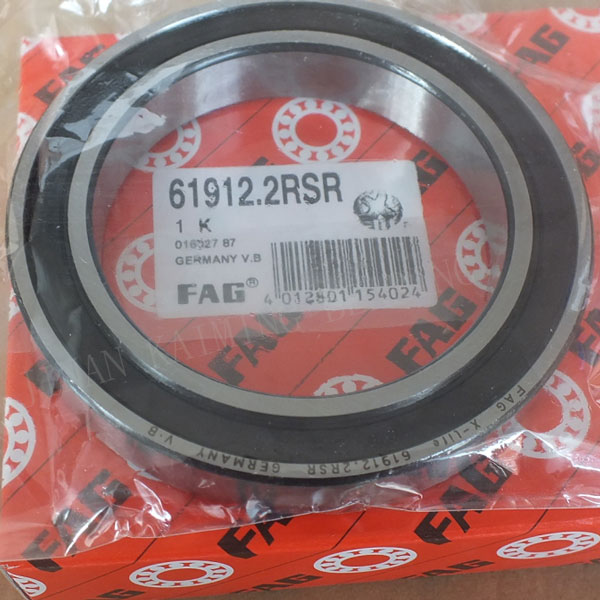

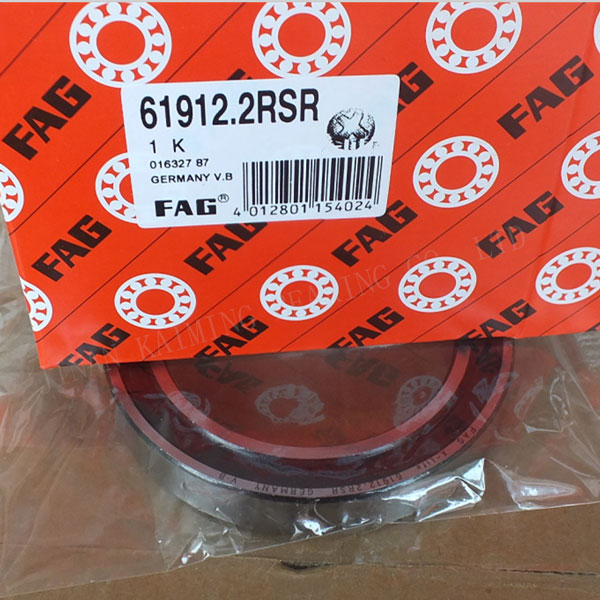

· Deep groove ball bearings are used in a particularly wide variety of applications
· Consequently, they are available in many executions and sizes
· Open bearing: Prefix designation Null
· Sealed on both sides: Prefix designation 2RS
· Shielded on both sides: Prefix designation 2Z
| Bore Diameter: | 60 mm |
| Outside Diameter: | 85 mm |
| Overall Width: | 13 mm |
| Closure Type: | Double Seal |
| Bore Type: | Round |
| Row Type & Fill Slot: | Single Row Non-Fill Slot |
| Internal Clearance: | C0 |
| Operating Temperature Range: | -40 to +210 °F |
| Dynamic Load Capacity: | 16.5 kN |
| Static Load Capacity: | 14.3 kN |
| Precision Rating: | Not Rated |
| Finish/Coating: | Uncoated |
| Cage Material: | Steel |
| Outer Ring Width: | 13 mm |
| Maximum RPM: | 4500 RPM |
| Fillet Radius: | 1 mm |
| Series: | 61 |
