Plain shaft bearing Thrust ball bearing 51112

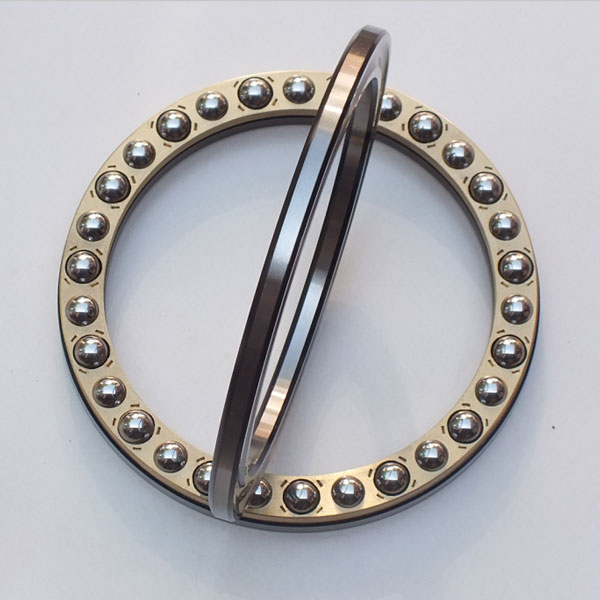

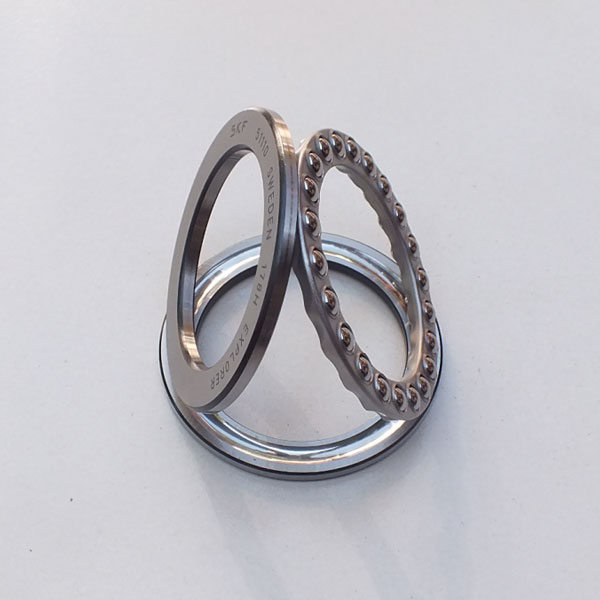

51112 Thrust ball bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.

Product data of  51112 Thrust ball bearing

d=60 mm

D=85 mm

H=17 mm

C=41.6 kN               Basic dynamic load rating, axial

C0=122 kN              Basic static load rating, axial

Pu=4.55 kN             Fatigue load limit

nB=3600 r/min       Reference speed

nG=5000 r/min       Limiting speed

m=0.3 kg                 Mass

Bearing interchangeble reference for 51112

NSK bearing 51112

bearing 51112

NTN bearing 51112

bearing 51112

KOYO bearing 51112
