2209
Koyo
2209

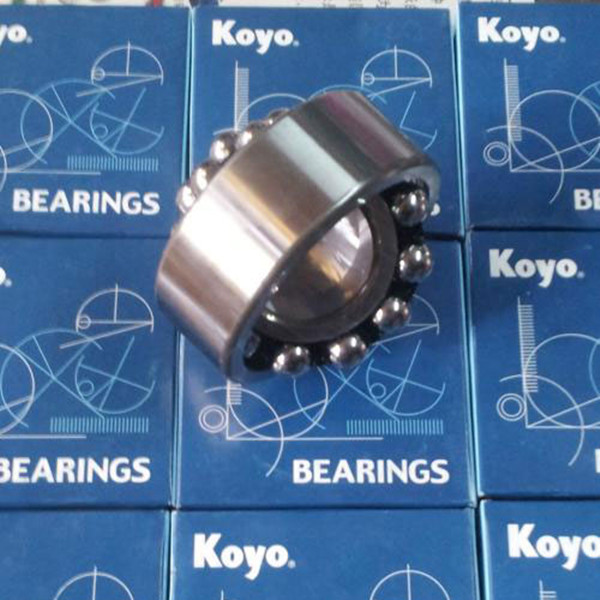

Original Koyo bearing 2209 double row self aligning ball bearing - 45*85*23mm
Product Description
Specification: Original Koyo bearing 2209 double row self aligning ball bearing - 45*85*23mm
Structure: Self aligning
Series: Ball bearing
Size: 45*85*23mm
Weight: 0.5kg
Number of row: Double
Closure type: Open
Cage material: Steel
Material: Steel
Calculation data
Dynamic load rating: 32.5KN
Static load rating: 10.6KN
Reference speed: 15000r/min
Limiting speed: 10000r/min
Contact
WhatsApp: +86-18678825008; Email: skfbearing@chinakmbearing.com
Introduction of self aligning ball bearing
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed. The bearings are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
SKF self - aligning ball bearing series
| 10000 | 108,126,127,129,1200,1201,1201,1203,1204,1205...1222,1224,1226 135,1301E,1302E,1303E,1304E,1305E,1306E,1307E...1313E,1314,1315,1316...1320,1321,1322 2200E,2201E,2202E,2203E,2204E,2205E...2213E,2214,2215,2216E,2217,2218...2222 2301,2302,2303,2304,2305,2306,2307E,2308E,2309E,2310,2311,2312,2313...2319,2320,2322 |
| 10000k | 1204EK,1205EK,1206ENK,1207EK,1207EK,1208EK,1209EK,1210EK,1211EK,1212EK,1213EK 1215K,1216K,1217K,1218K,1219K,1220K,1221K,1222K,1304EK,1301EK...1313EK 1315K,1316K,1317K,1318K,1319K.1320K,1322K 2205EK,2206EK...2213EK,2215K.2216EK,2217K,2218K...2222K |
| 10000K+H0000 | 1204K+H204,1205EK+H205...1213EK+H213,1215K+H215 1304EK+H304,1305EK+H305...1315EK+H315,1316K+HH316...1322K+H322 2205EK+H305,2206EK+H306...2210EK+H310,1304K+H304...1320K+H320,1322K+H322,2211EK+H311,2212EK+H312,2213EK+H313,2215K+H315,2216EK+H316,2217K+H317...2220K+H320,2222K+H322,2305K+H2305,2306K+H2306,2307EK+H2307...2309EK+H2309,2310K+H2310...2320K+H2320,2322K+H2322 |
Company Information( Jinan Kaiming Bearing Co., Ltd.)
Jinan Kaiming Bearing Co., Ltd. is a famous bearing manufacturer authorized agent and is one of the world famous branded bearing sellers. Our company was established in the year of 1992, we have rich experience and our products sell well throughout the world. We have good reputation in the international market by the perfect service and sufficient supply.
1) Our company insists on the “quality first, credit first” business ideas and our product specification is well-founded.
2) High-quality bearing, fast delivery time and best price is our best service. You will be satisfied.
