Quick Details
Type: Needle
Bore Size: 0 - 10 mm
Outside Diameter: 0 - 22 mm
Model Number: NA4900
Precision Rating: P1 P2 P3 P4 P5 P6
Seals Type: OPEN/ZZ/2RS
Number of Row: Single Row
Place of Origin: Shandong, China (Mainland)
height: 13mm
certificate: ISO 9001:2000
sample: available
Material: Chrome Steel GCR15
Lubrication: Free-running Grease
Cage: Steel Cage.copper Cage.nylon Cage
Feature: Long life time
A needle roller bearing is a bearing which uses small cylindrical rollers.
They are used to reduce friction of a rotating surface.
Needle bearings have a large surface area that is in contact with the bearing
outer surfaces compared to ball bearings. Additionally there is less added clearance
(difference between the diameter of the shaft and the diameter of the bearing) so
they are much more compact.
The typical structure consists of a needle cage which orients and contains the needle
rollers, the needle rollers themselves, and an outer race (sometimes the housing itself).
Radial needle bearings are cylindrical and use rollers parallel to the axis of the shaft.

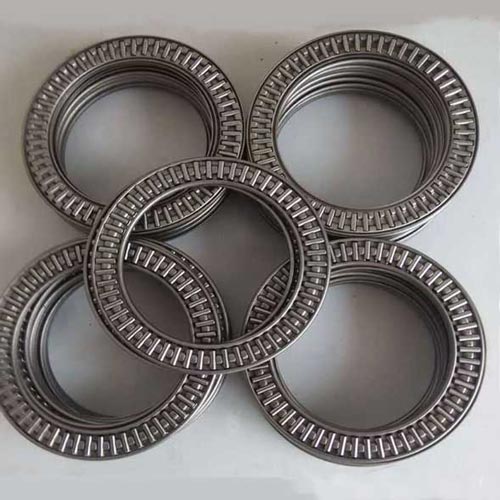

Thrust needle bearings are flat and use a radial pattern of needles.
Full complement bearings have solid inner and outer rings and rib-guided cylindrical rollers.
Since these bearings have the largest possible number of rolling elements, they have
extremely high radial load carrying capacity and are suitable for particularly compact designs.
