NTN spherical roller thrust bearing 29418 - 90*190*60mm
Product Description
Specification: NTN spherical roller thrust bearing 29418 - 90*190*60mm
Product name | 29418 spherical roller thrust bearing |
Series | Roller bearing |
Size | 90*190*60mm |
Cage material | Brass |
Material | Steel |
Dynamic load rating | 815KN |
Static load rating | 2000KN |
| Reference speed | 1900r/min |
| Limiting speed | 3400r/min |
Lead time | 3 days for stock, 15 days for large quantity. |
Payment | A: 100% L/C at sight B: 30% T/T in advance, 70% before shipment C. 100% Western Union/ Paypal |
Contact | +86-17854271903; koyo@chinakmbearing.com |
Introduction of spherical roller thrust bearing
A spherical roller thrust bearing is a rolling-element bearing of thrust type that permits rotation with low friction, and permits angular misalignment. The bearing is designed to take radial loads, and heavy axial loads in one direction. Typically these bearings support a rotating shaft in the bore of the shaft washer that may be misaligned in respect to the housing washer. The misalignment is possible due to the spherical internal shape of the house washer.
Application: Spherical roller thrust bearings are used in industrial applications, where there are heavy axial loads, moderate speeds and possibly misalignment. Some common application areas are: Gearboxes, Pulp and paper processing equipment (notably refiners), Marine propulsion and offshore drilling, Cranes and swing bridges, Water turbines and Extruders for injection molding.

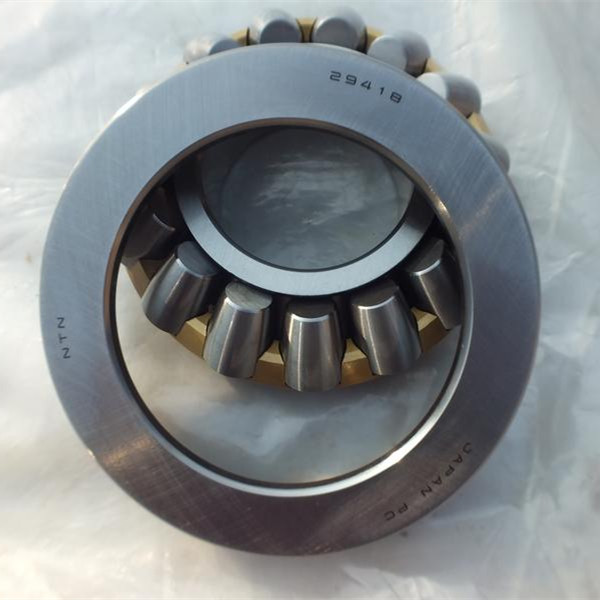

Product Picture
Our company also can provide other bearings for you to choose!
1.Deep groove ball bearing: 6000 series, 6200series, 6300 series, 6400 series;
2.Taper roller bearing: 30000 series, 31000 series, 32000 series, 33000 series;
3.Cylindrical roller bearing: NU series, NUP series, NJ series, N series;
4.Spherical roller bearing: 20000 series, 21000 series, 22000 series, 23000 series;
5.Angular contact ball bearing: 7100 series, 7200 series, 7300 series, 7400 series;
6.Self-aligning ball bearing: 1200 series, 1300 series, 2200 series, 2300 series;
7.Thrust ball bearing: 51100 series, 51200 series, 51300 series, 51400 series;
8.Pillow block bearing: UC series, UCP series, UCF series, UCFL series.
