Bore Size: 0 - 143 mm
Outside Diameter: 0 - 175 mm

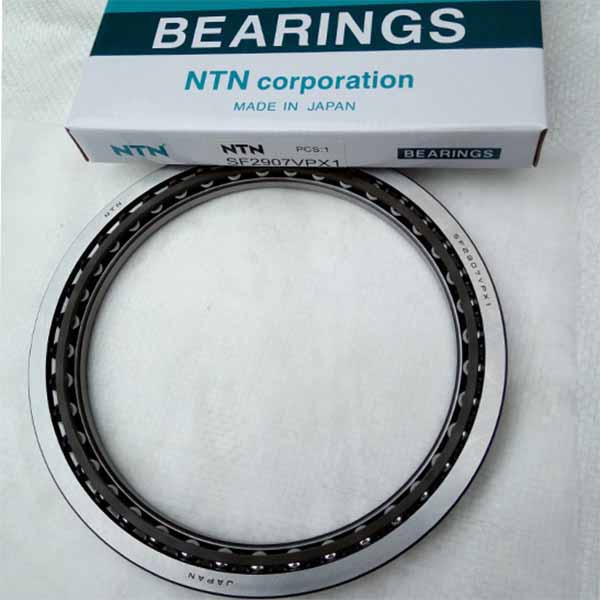

Model Number: SF2907VPX1
Description: Excavator Bearing
Brand: NTN
Excavator bearings features:
1.Universally matchable bearings after special processing, when the bearing is close to each other to install any combination can meet the internal clearance or preload, and the average load distribution, without the use of shims or similar devices.
2.Basic design of single row angular contact ball bearings are mainly used in each location is only one configuration of the bearing. The width and the outstanding amount of the general level of tolerance. Therefore not suitable for installation close to two single row angular contact ball bearings.
Excavator bearings model:
| Type | Bearing Number | Dimensions(mm) |
| ODxIDxWidth | ||
| Excavator Bearings | BA180-4BWSA | 250*180*33 |
| BA4531 | 315*225*40 | |
| 260BA355-2 | 355*260*44 | |
| BA205-1 | 295*205*40 | |
| 120BA16 | 165*120*22 | |
| BA280-2SA | 370*280*40 | |
| BA230-7A | 300*230*32 | |
| BA240-3A | 310*240*33 | |
| BA180-2256 | 225*180*21.5 | |
| BA290-3A | 380*290*40 | |
| BA250-4A | 330*250*38 | |
| BA246 | 313*246*32 | |
| BA289-1 | 355*289*33 | |
| BA200-10 | 280*200*38 |
