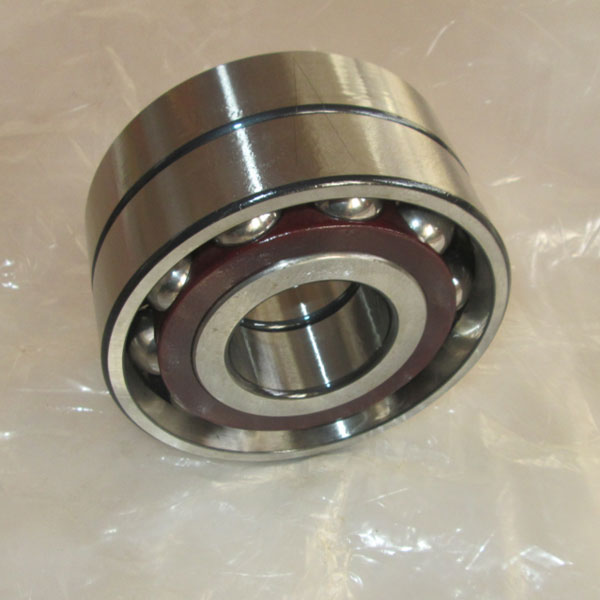

NTN bearing double row ball bearing 5305


NTN 5305C3 double row Angular contact ball bearings with greater axial internal clearance than normal.They can replace 5305 A/C3, 3305-BD/C3, Koyo 5305 C3, Nachi 5305 C3 etc.

Description of NTN 5305 C3 double row Angular contact ball bearings

Inside diameter=25 mm

Outside diameter=62 mm

Width=25.4 mm

Weight=0.34 kg

Basic dynamic load rating=32.5 kN

Basic static load rating= 20.7 kN

Limiting speed with Oil lub=7500 rpm

Limiting speed with Oil lub.=10000 rpm
