NSK bearings for oil field equipment in stock 22218
Technical data of NSK 22218
ID: 90 mm
OD: 160 mm
Width: 40 mm
Weight: 3.3 kg
Basic dynamic load rating: 360 kN
Basic static load rating: 395 kN
Limiting speed for grease lub.: 3200 rpm
Limiting speed for oil lub.: 4000 rpm

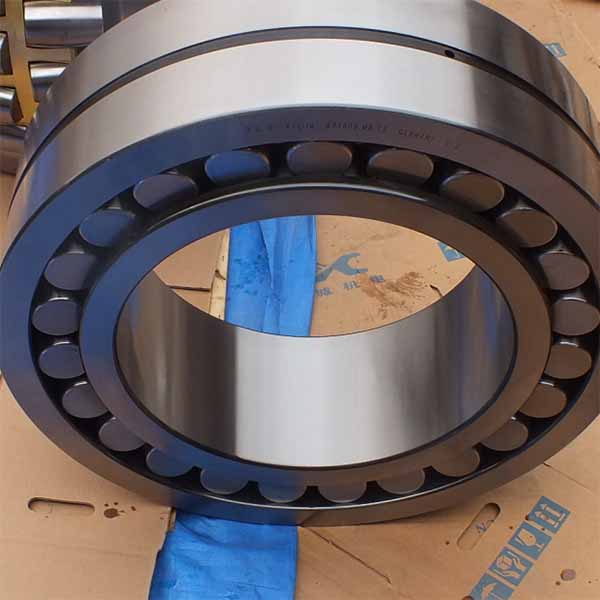

NSK 22218 Spherical roller bearings with cylindrical bore, C3 internal clearance and oil groove on the out ring surface.They are made in Japan and have our one year warranty.
Part NSK 222.. Series Spherical roller bearings catalogue
| Part No. | ID mm | OD mm | Thk mm |
| 22206HE4 | 30 | 62 | 20 |
| 22206CE4 | 30 | 62 | 20 |
| 22207HE4 | 35 | 72 | 23 |
| 22207CE4 | 35 | 72 | 23 |
| 22208HE4 | 40 | 80 | 23 |
| 22208EAE4 | 40 | 80 | 23 |
| 22209HE4 | 45 | 85 | 23 |
| 22209EAE4 | 45 | 85 | 23 |
| 22210HE4 | 50 | 90 | 23 |
| 22210EAE4 | 50 | 90 | 23 |
| 22210CAME4 | 50 | 90 | 23 |
| 22211HE4 | 55 | 100 | 25 |
| 22211EAE4 | 55 | 100 | 25 |
| 22211CAME4 | 55 | 100 | 25 |
| 22212HE4 | 60 | 110 | 28 |
| 22212EAE4 | 60 | 110 | 28 |
| 22212CAME4 | 60 | 110 | 28 |
| 22213HE4 | 65 | 120 | 31 |
| 22213EAE4 | 65 | 120 | 31 |
| 22213CAME4 | 65 | 120 | 31 |
| 22214HE4 | 70 | 125 | 31 |
| 22214EAE4 | 70 | 125 | 31 |
| 22214CAME4 | 70 | 125 | 31 |
| 22215HE4 | 75 | 130 | 31 |
| 22215EAE4 | 75 | 130 | 31 |
| 22215CAME4 | 75 | 130 | 31 |
| 22216HE4 | 80 | 140 | 33 |
| 22216EAE4 | 80 | 140 | 33 |
| 22216CAME4 | 80 | 140 | 33 |
| 22217HE4 | 85 | 150 | 36 |
| 22217EAE4 | 85 | 150 | 36 |
| 22217CAME4 | 85 | 150 | 36 |
| 22218HE4 | 90 | 160 | 40 |
| 22218EAE4 | 90 | 160 | 40 |
| 22218CAME4 | 90 | 160 | 40 |
| 22219HE4 | 95 | 170 | 43 |
| 22219EAE4 | 95 | 170 | 43 |
| 22219CAME4 | 95 | 170 | 43 |
| 22220HE4 | 100 | 180 | 46 |
| 22220EAE4 | 100 | 180 | 46 |
| 22220CAME4 | 100 | 180 | 46 |
| 22222HE4 | 110 | 200 | 53 |
| 22222EAE4 | 110 | 200 | 53 |
| 22222CAME4 | 110 | 200 | 53 |
| 22224HE4 | 120 | 215 | 58 |
| 22224EAE4 | 120 | 215 | 58 |
| 22224CAME4 | 120 | 215 | 58 |
| 22226HE4 | 130 | 230 | 64 |
| 22226EAE4 | 130 | 230 | 64 |
| 22226CAME4 | 130 | 230 | 64 |
| 22228CDE4 | 140 | 250 | 68 |
| 22228CAME4 | 140 | 250 | 68 |
| 22230CDE4 | 150 | 270 | 73 |
| 22230CAME4 | 150 | 270 | 73 |
| 22232CDE4 | 160 | 290 | 80 |
| 22232CAME4 | 160 | 290 | 80 |
| 22234CDE4 | 170 | 310 | 86 |
| 22234CAME4 | 170 | 310 | 86 |
| 22236CDE4 | 180 | 320 | 86 |
| 22236CAME4 | 180 | 320 | 86 |
| 22238CAME4 | 190 | 340 | 92 |
| 22240CAME4 | 200 | 360 | 98 |
| 22244CAME4 | 220 | 400 | 108 |
| 22248CAME4 | 240 | 440 | 120 |
| 22252CAME4 | 260 | 480 | 130 |
| 22256CAME4 | 280 | 500 | 130 |
| 22260CAME4 | 300 | 540 | 140 |
| 22264CAME4 | 320 | 580 | 150 |
