70BNR10
NSK
70BNR10

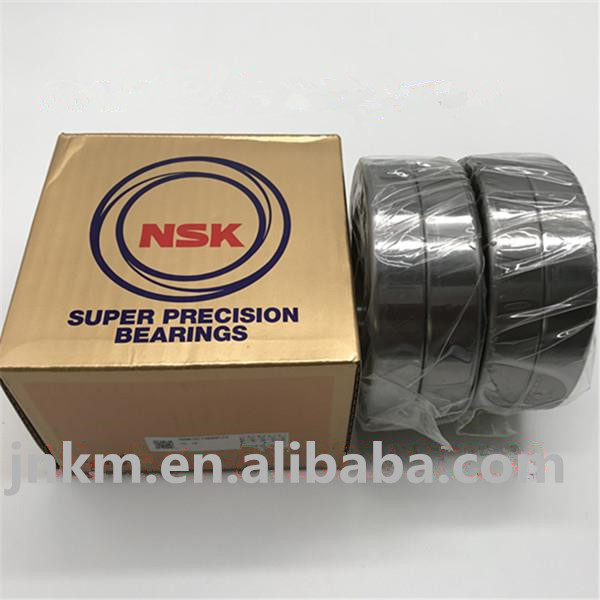

NSK Spindle bearing 70BNR10STYNDBBLP4/70BNR10 Ultra high-speed ball bearings
Specification: 70BNR10 Angular contact ball bearing（One set has 4pcs bearings.)
| Model: 70BNR10 | Brand: Popular brand | Structure: Angular contact | Series: Ball bearing |
| Size: 70x110x20mm | Weight: 2.58kg | Row number: 1 | Cage: Brass/Bakelite/Plastic |
| Material: Chorme steel | Contact angular: 40° | Seals type: Open | Certificate: ISO9001:2000 |
| Precision rating: P4 | Clearance: C0, C1, C2, C3, C4 | ||
| Vibration: Z1V1, Z2V2, Z3V3 | Contact: +86-17854271903; koyo@chinakmbearing.com | ||
Calculation data:
| Basic dynamic load rating(C): | 89.2KN |
| Basic static load rating(Co): | 79.2KN |
| Fatigue load rating(Pu): | 1.18KN |
| Grease speed: | 15600r/min |
| Oil-air speed: | 22300r/min |
Angular contact ball bearing
Introduction: Angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions.
Applications: Angular contact ball bearings are engineered for use in high-speed, high precision applications for: Agriculture, Chemical, General industry and Utilities.
NSK Spindle bearing 70BNR10STYNDBBLP4/70BNR10 Ultra high-speed ball bearings
Specification: 70BNR10 Angular contact ball bearing（One set has 4pcs bearings.)
| Model: 70BNR10 | Brand: Popular brand | Structure: Angular contact | Series: Ball bearing |
| Size: 70x110x20mm | Weight: 2.58kg | Row number: 1 | Cage: Brass/Bakelite/Plastic |
| Material: Chorme steel | Contact angular: 40° | Seals type: Open | Certificate: ISO9001:2000 |
| Precision rating: P4 | Clearance: C0, C1, C2, C3, C4 | ||
| Vibration: Z1V1, Z2V2, Z3V3 | Contact: +86-17854271903; koyo@chinakmbearing.com | ||
Calculation data:
| Basic dynamic load rating(C): | 89.2KN |
| Basic static load rating(Co): | 79.2KN |
| Fatigue load rating(Pu): | 1.18KN |
| Grease speed: | 15600r/min |
| Oil-air speed: | 22300r/min |
Angular contact ball bearing
Introduction: Angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions.
Applications: Angular contact ball bearings are engineered for use in high-speed, high precision applications for: Agriculture, Chemical, General industry and Utilities.
