7210B
NSK
7210B
NSK 7210B Angular contact ball bearing NSK 7210B radial ball bearing
Specification: 7210B Angular contact ball bearing
| Model: 7210B | Brand: Popular brand | Structure: Angular contact | Series: Ball bearing |
| Size: 50x90x20mm | Weight: 0.47kg | Row number: 1 | Cage material: Brass |
| Material: Chorme steel | Contact angular: 40° | Seals type: Open | Certificate: ISO9001:2000 |
| Precision rating: P0, P1, P2, P3, P4, P5, P6, P2 | Clearance: C0, C1, C2, C3, C4 | ||
| Vibration: Z1V1, Z2V2, Z3V3 | Contact: +86-17854271903; koyo@chinakmbearing.com | ||
| Basic dynamic load rating: | 37.7KN |
| Basic static load rating: | 28.5KN |
| Fatigue load rating: | 1.22KN |
| Reference speed: | 9000r/min |
| Limiting speed: | 8500r/min |
Angular contact ball bearing
Introduction: Angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions.
Applications: Angular contact ball bearings are engineered for use in high-speed, high precision applications for: Agriculture, Chemical, General industry and Utilities.

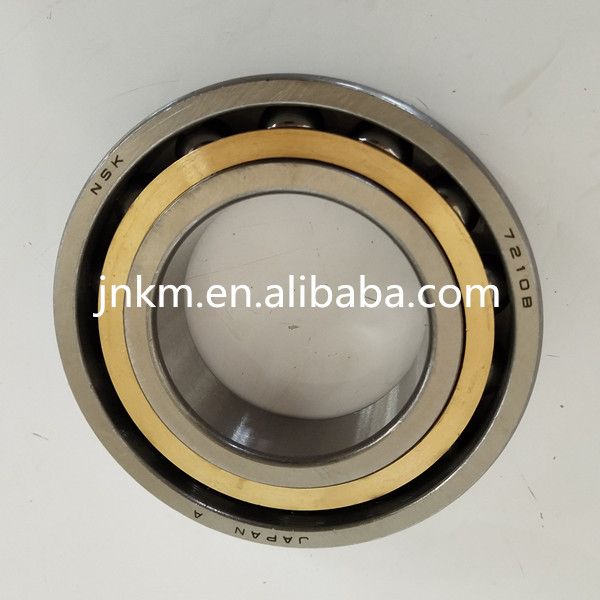

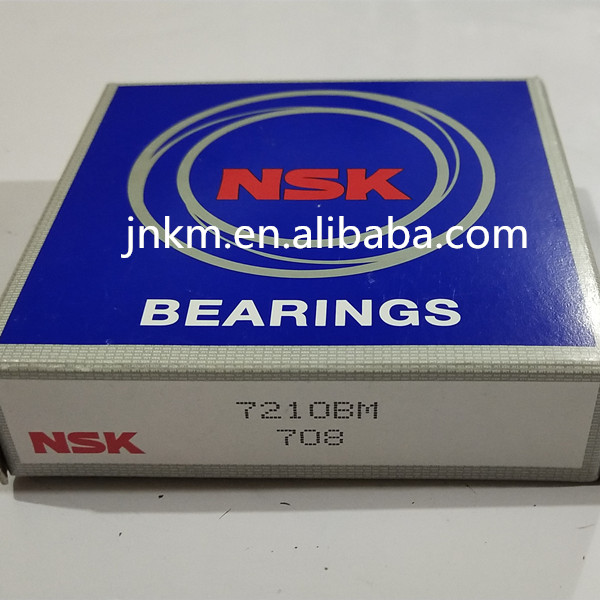

Product Picture
We also can offer you other high precision bearings.
Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry. |
NSK 7210B Angular contact ball bearing NSK 7210B radial ball bearing
Specification: 7210B Angular contact ball bearing
| Model: 7210B | Brand: Popular brand | Structure: Angular contact | Series: Ball bearing |
| Size: 50x90x20mm | Weight: 0.47kg | Row number: 1 | Cage material: Brass |
| Material: Chorme steel | Contact angular: 40° | Seals type: Open | Certificate: ISO9001:2000 |
| Precision rating: P0, P1, P2, P3, P4, P5, P6, P2 | Clearance: C0, C1, C2, C3, C4 | ||
| Vibration: Z1V1, Z2V2, Z3V3 | Contact: +86-17854271903; koyo@chinakmbearing.com | ||
| Basic dynamic load rating: | 37.7KN |
| Basic static load rating: | 28.5KN |
| Fatigue load rating: | 1.22KN |
| Reference speed: | 9000r/min |
| Limiting speed: | 8500r/min |
Angular contact ball bearing
Introduction: Angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both directions.
Applications: Angular contact ball bearings are engineered for use in high-speed, high precision applications for: Agriculture, Chemical, General industry and Utilities.
Product Picture
We also can offer you other high precision bearings.
Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry. |
