N220 ECP
KMY/OEM/FAMOUS BRAND
8482500090
Product description
1.FREE SAMPLES:contact us by email or trade manager, we will send the free samples according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous roller bearings with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard roller bearingss is Easily Fulfilled by us due to its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability roller bearingss with
excellent quality and better performance. Resulting in increased cost saving.
| d | 100 mm |
| D | 180 mm |
| B | 34 mm |
| E | 160 mm |
| F | 120 mm |
| d1 | 128 mm |
| rs min | 2.1 mm |
| r1s min | 2.1 mm |
| Radial clearance class | CN |
| Mass (without HJ ring) | 3.48 kg |
| Brand | NTN |
| Dynamic load, C | 183 kN |
| Static load, C0 | 217 kN |
| Fatigue limit load, Cu | 23.9 kN |
| Nlim (oil) | 4,500 Tr/min |
| Nlim (grease) | 3,800 Tr/min |
| Min operating temperature, Tmin | -40 °C |
| Max operating temperature, Tmax | 120 °C |
| Characteristic cage frequency, FTF | 0.43 Hz |
| Characteristic rolling element frequency, BSF | 6.86 Hz |
| Characteristic outer ring frequency, BPF0 | 6.86 Hz |
| Characteristic inner ring frequency, BPFI | 9.14 Hz |
| da min | 111 mm |
| Da max | 169 mm |
| Db min | 163 mm |
| Dc max | 158 mm |
| ra max | 2 mm |
| r1a max | 2 mm |

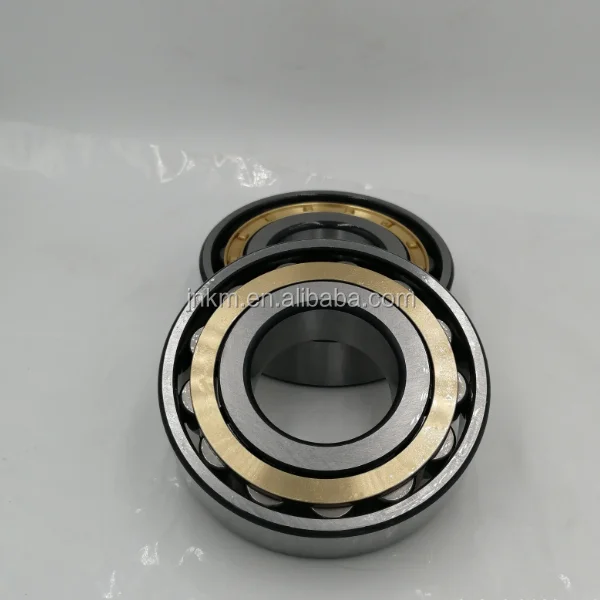

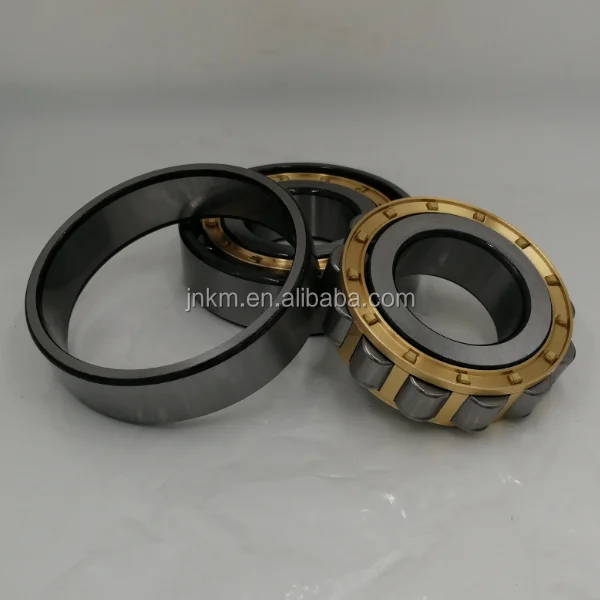

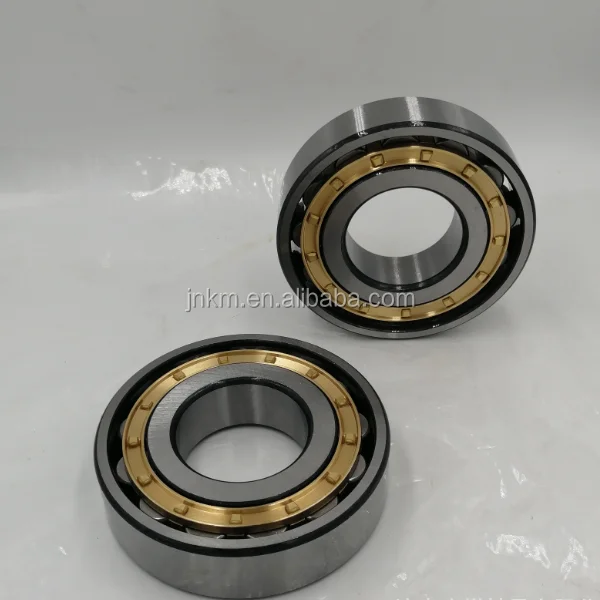

Product image
Company information
Certificate
FAQ
1.What about the MOQ?Can you accept sample order?
Our company MOQ is 1pc,we can accept sample order.
2.Can you accept OEM/ODM?
Yes,we can.Customizing according to your requirement or drawing.
3.Do you supply door to door service?
By air or express(DHL,FEDEX,EMS etc.)
4.Could you tell me the materials of your bearings?
Chrome steel, carbon steel, and stainless steel, ceramic and plastic material.
5.Your company is a factory or trading company?
We have our own factory,also doing trade.
