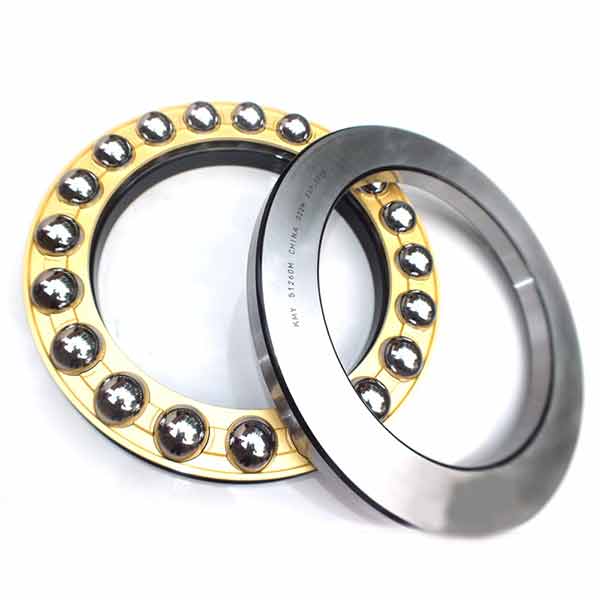

Mini rotary vane pump bearing Thrust ball bearing 51140 MP
Thrust ball bearing 51140 MP comprise of shaft location washers, housing locating washers and brass cage assemblies. The bearings are not self-retaining; the ball and cage assembly can be fitted separatley. Bearings of series 511 & 512 have a flat housing location washer. They do not permit angular misalignment or slewing between the shaft and the housing.
Product data of Thrust ball bearing 51140 MP
d=200 mm
D=250 mm
T=37 mm
C=170 kN Basic dynamic load rating, axial
C0=655 kN Basic static load rating, axial
Cua=22.7 kN Fatigue load limit
nG=1400 r/min Limiting speed
m=4.12 kg Mass
Bearing interchangeble reference for 51140 MP
bearing 51140M
NSK bearing 51140M
NTN bearing 51140M
bearing 51140M
KOYO bearing 51140R
More bearing cross reference and interchange information, Please contact us.
