Low noise cheap bearing sizes deep groove ball bearing 6207 2Z
Overview of Deep Groove Ball Bearings
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.
The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders).
Deep Groove Ball Bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
Features of SKF Deep Groove Ball Bearing 6207 2Z
| NACHI Deep Groove Ball Bearing 6207-2Z | |
| Brand Name | skf |
| Structure | Deep Groove |
| Type | Ball |
| Seals Type | Contact seal type |
| Bore Size(mm) | 35 |
| Outside Diameter(mm) | 72 |
| Breadth(mm) | 17 |
| Weight(kg) | 0.288 |
| Clearance | C0,C2,C3,C4,C5 |
| Precision Rating | ABEC1,ABEC3,ABEC5,ABEC7,ABEC9 |
| Vibration | V1,V2,V3,V4 |
| Noise Level | Z1,Z2,Z3,Z4 |
| Cage | Steel / Brass / Nylon |
| Basic Dynamic Load Rating Cr(N) | 25700 |
| Basic Static Load Rating Cor(N) | 15300 |
| Advantage | · Longer Life Adopted NACHI original seal design to prevent contamination and grease leakage. Contains special grease for wider temperature ranges and longer life. · Smooth and Quiet Operation The precision level of our bearing components has been enhanced to ensure smooth and quiet operation. · Low Torque Lower rotating torque by improving seal lips. |
| Application |
· Electric Motors · Automotive Alternators · Automotive Starters · Compressors · Blowers · Transmissions |
Other Models of Nachi Deep Groove Ball Bearings

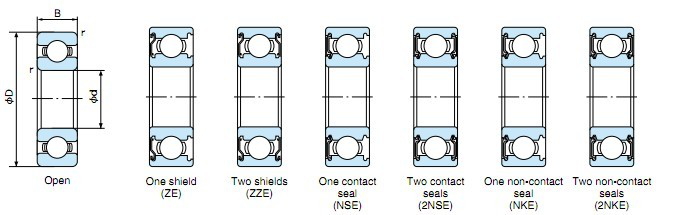

| NO. | Number of Row | Open type | Shield type | Contact seal type | Non-contact seal type | Size (d*D*B mm) | Weight(KG) | |||
| 1 | Single Row | 6800Z | 6800ZZ | — | — | — | — | 10*19*5 | 0.005 | |
| 2 | Single Row | 6900ZE | 6900ZZE | 6900NSE | 6900-2NSE | 6900NKE | 6900-2NKE | 10*22*6 | 0.009 | |
| 3 | Single Row | 6000ZE | 6000ZZE | 6000NSE | 6000-2NSE | 6000NKE | 6000-2NKE | 10*26*8 | 0.019 | |
| 4 | Single Row | 6200ZE | 6200ZZE | 6200NSE | 6200-2NSE | 6200NKE | 6200-2NKE | 10*30*9 | 0.032 | |
| 5 | Single Row | 6300ZE | 6300ZZE | 6300NSE | 6300-2NSE | 6300NKE | 6300-2NKE | 10*35*11 | 0.053 | |
| 6 | Single Row | 6801ZE | 6801ZZE | 6801NSE | 6801-2NSE | 6801NKE | 6801-2NKE | 12*21*5 | 0.006 | |
| 7 | Single Row | 6901ZE | 6901ZZE | 6901NSE | 6901-2NSE | 6901NKE | 6901-2NKE | 12*24*6 | 0.011 | |
| 8 | Single Row | 6001ZE | 6001ZZE | 6001NSE | 6001-2NSE | 6001NKE | 6001-2NKE | 12*28*8 | 0.023 | |
| 9 | Single Row | 6201ZE | 6201ZZE | 6201NSE | 6201-2NSE | 6201NKE | 6201-2NKE | 12*32*10 | 0.037 | |
| 10 | Single Row | 6301ZE | 6301ZZE | 6301NSE | 6301-2NSE | 6301NKE | 6301-2NKE | 12*37*12 | 0.06 | |
| 11 | Single Row | 6802ZE | 6802ZZE | 6802NSE | 6802-2NSE | 6802NKE | 6802-2NKE | 15*24*5 | 0.007 | |
| 12 | Single Row | 6902ZE | 6902ZZE | 6902NSE | 6902-2NSE | 6902NKE | 6902-2NKE | 15*28*7 | 0.016 | |
| 13 | Single Row | — | — | — | — | — | — | 15*32*8 | 0.025 | |
| 14 | Single Row | 6002ZE | 6002ZZE | 6002NSE | 6002-2NSE | 6002NKE | 6002-2NKE | 15*32*9 | 0.032 | |
| 15 | Single Row | 6202ZE | 6202ZZE | 6202NSE | 6202-2NSE | 6202NKE | 6202-2NKE | 15*35*11 | 0.045 | |
| 16 | Single Row | 6302ZE | 6302ZZE | 6302NSE | 6302-2NSE | 6302NKE | 6302-2NKE | 15*42*13 | 0.082 | |
| 17 | Single Row | 6803ZE | 6803ZZE | 6803NSE | 6803-2NSE | 6803NKE | 6803-2NKE | 17*26*5 | 0.008 | |
| 18 | Single Row | 6903ZE | 6903ZZE | 6903NSE | 6903-2NSE | 6903NKE | 6903-2NKE | 17*30*7 | 0.018 | |
| 19 | Single Row | 6003ZE | 6003ZZE | 6003NSE | 6003-2NSE | 6003NKE | 6003-2NKE | 17*35*10 | 0.039 | |
| 20 | Single Row | 6203ZE | 6203ZZE | 6203NSE | 6203-2NSE | 6203NKE | 6203-2NKE | 17*40*12 | 0.065 | |
| 21 | Single Row | 6303ZE | 6303ZZE | 6303NSE | 6303-2NSE | 6303NKE | 6303-2NKE | 17*47*14 | 0.115 | |
| 22 | Single Row | 6804ZE | 6804ZZE | 6804NSE | 6804-2NSE | 6804NKE | 6804-2NKE | 20*32*7 | 0.019 | |
| 23 | Single Row | 6904ZE | 6904ZZE | 6904NSE | 6904-2NSE | 6904NKE | 6904-2NKE | 20*37*9 | 0.036 | |
| 24 | Single Row | 6004ZE | 6004ZZE | 6004NSE | 6004-2NSE | 6004NKE | 6004-2NKE | 20*42*12 | 0.07 | |
| 25 | Single Row | 6204ZE | 6204ZZE | 6204NSE | 6204-2NSE | 6204NKE | 6204-2NKE | 20*47*14 | 0.106 | |
| 26 | Single Row | 6304ZE | 6304ZZE | 6304NSE | 6304-2NSE | 6304NKE | 6304-2NKE | 20*52*15 | 0.144 | |
