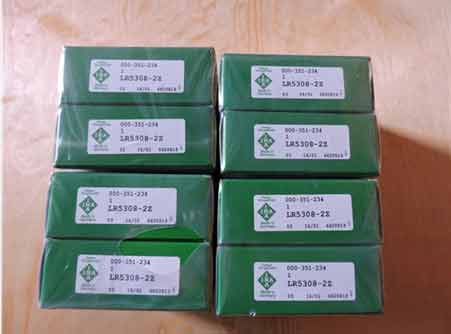

LR series Track Roller Bearing LR5308ZZ LR5308 KDDU
Quick Details:
Structure:deep groove
Type:ball
Inner diameter:40mm
Outer diameter:100mm
Width:36.5mm
Brand: SKF FAG INA NSK KOYO NTN HRB ZWZ…
Number of Row:Single row
Place of origin:Sweden
Seals type:open,sealed
| Type | Weight | D | d | B | C | R | Rs | Cw | Cow | Puw | Seal | Shield |
|
| (g) | mm |
|
| N |
|
| |||||
| LR5302NPP | 150 | 47 | 15 | 19 | 19 | -- | 1 | 14600 | 9200 | 380 | 6500 | 10000 |
| LR5302NPPU | 150 | 47 | 15 | 19 | 19 | 500 | 1 | 14600 | 9200 | 380 | 6500 | 10000 |
| LR5302KDD | 150 | 47 | 15 | 19 | 19 | -- | 1 | 14600 | 9200 | 380 | 6500 | 10000 |
| LR5302KDDU | 150 | 47 | 15 | 19 | 19 | 500 | 1 | 14600 | 9200 | 380 | 6500 | 10000 |
| LR5303NPP | 210 | 52 | 17 | 22.2 | 22 | -- | 1 | 17200 | 11100 | 462 | 4700 | 6500 |
| LR5303NPPU | 210 | 52 | 17 | 22.2 | 22 | 500 | 1 | 17200 | 11100 | 462 | 4700 | 6500 |
| LR5303KDD | 210 | 52 | 17 | 22.2 | 22 | -- | 1 | 17200 | 11100 | 462 | 4700 | 6500 |
| LR5303KDDU | 210 | 52 | 17 | 22.2 | 22 | 500 | 1 | 17200 | 11100 | 462 | 4700 | 6500 |
| LR5304NPP | 340 | 62 | 20 | 22.2 | 22 | -- | 1.1 | 21100 | 14500 | 606 | 4500 | 6500 |
| LR5304NPPU | 340 | 62 | 20 | 22.2 | 22 | 500 | 1.1 | 21100 | 14500 | 606 | 4500 | 6500 |
| LR5304KDD | 340 | 62 | 20 | 22.2 | 22 | -- | 1.1 | 21100 | 14500 | 606 | 4500 | 6500 |
| LR5304KDDU | 340 | 62 | 20 | 22.2 | 22 | 500 | 1.1 | 21100 | 14500 | 606 | 4500 | 6500 |
| LR5305NPP | 500 | 72 | 25 | 25.4 | 25 | -- | 1.1 | 27500 | 19500 | 813 | 3900 | 5500 |
| LR5305NPPU | 500 | 72 | 25 | 25.4 | 25 | 500 | 1.1 | 27500 | 19500 | 813 | 3900 | 5500 |
| LR5305KDD | 500 | 72 | 25 | 25.4 | 25 | -- | 1.1 | 27500 | 19500 | 813 | 3900 | 5500 |
| LR5305KDDU | 500 | 72 | 25 | 25.4 | 25 | 500 | 1.1 | 27500 | 19500 | 813 | 3900 | 5500 |
| LR5306NPP | 670 | 80 | 30 | 30.2 | 30 | -- | 1.1 | 36500 | 26500 | 1100 | 3100 | 4300 |
| LR5306NPPU | 670 | 80 | 30 | 30.2 | 30 | 500 | 1.1 | 36500 | 26500 | 1100 | 3100 | 4300 |
| LR5306KDD | 670 | 80 | 30 | 30.2 | 30 | -- | 1.1 | 36500 | 26500 | 1100 | 3100 | 4300 |
| LR5306KDDU | 670 | 80 | 30 | 30.2 | 30 | 500 | 1.1 | 36500 | 26500 | 1100 | 3100 | 4300 |
| LR5307NPP | 970 | 90 | 35 | 34.9 | 35 | -- | 1.5 | 44500 | 33000 | 1370 | 2500 | 3600 |
| LR5307NPPU | 970 | 90 | 35 | 34.9 | 35 | 500 | 1.5 | 44500 | 33000 | 1370 | 2500 | 3600 |
| LR5307KDD | 970 | 90 | 35 | 34.9 | 35 | -- | 1.5 | 44500 | 33000 | 1370 | 2500 | 3600 |
| LR5307KDDU | 970 | 90 | 35 | 34.9 | 35 | 500 | 1.5 | 44500 | 33000 | 1370 | 2500 | 3600 |
| LR5308NPP | 1200 | 100 | 40 | 36.5 | 37 | -- | 1.5 | 56000 | 42000 | 1750 | 2300 | 3300 |
| LR5308NPPU | 1200 | 100 | 40 | 36.5 | 37 | 500 | 1.5 | 56000 | 42000 | 1750 | 2300 | 3300 |
| LR5308KDD | 1200 | 100 | 40 | 36.5 | 37 | -- | 1.5 | 56000 | 42000 | 1750 | 2300 | 3300 |
| LR5308KDDU | 1200 | 100 | 40 | 36.5 | 37 | 500 | 1.5 | 56000 | 42000 | 1750 | 2300 | 3300 |
