| Quantity: | |
|---|---|
Bore Size: 0 - 25 mm
Outside Diameter: 0 - 72 mm

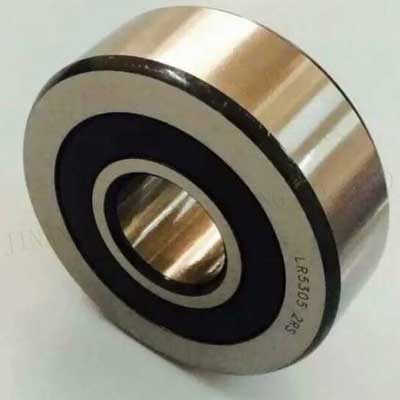

Model Number: LR5305 2RS
Precision Rating: P0, P6, P5, P4, P2
Seals Type: open Z,ZZ,RS,2RS,2RZ
Width: 25.4mm
LR5305 Track rollers bearing LR5305 description:
Ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.
Ball bearing track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.
Yoke type track rollers with a crowned outside surface and stud type track rollers have a radius of curvature of R = 500 mm.
Bore Size: 0 - 25 mm
Outside Diameter: 0 - 72 mm
Model Number: LR5305 2RS
Precision Rating: P0, P6, P5, P4, P2
Seals Type: open Z,ZZ,RS,2RS,2RZ
Width: 25.4mm
LR5305 Track rollers bearing LR5305 description:
Ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.
Ball bearing track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.
Yoke type track rollers with a crowned outside surface and stud type track rollers have a radius of curvature of R = 500 mm.
