| Quantity: | |
|---|---|

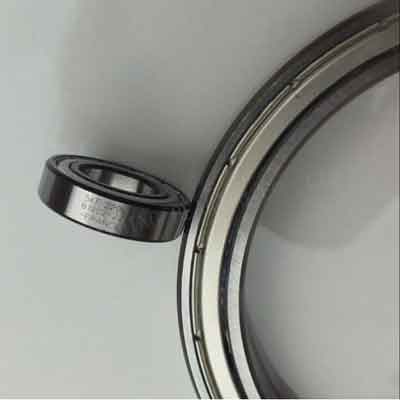

KMY bearing deep groove ball bearing plastic roller wheel bearing ball bearing 61902
| Inside Diameter: | 15mm |
| Outside Diameter: | 28mm |
| Width: | 7mm |
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution
|
| Cars & Motorcycle repairs |
|
| Transmission and Gearboxes |
|
| Agricultural and Automotive |
|
| Electric motors / Industry |
|
| Pumps, Garden Machinery |
|
| Great value quality parts dispatched the same day |
Product Attributes
Category:
Deep Groove Ball Bearings
Model:
61902
d:
15 mm
D:
28 mm
B:
7 mm
Cr:
4350 N
C0r:
2260 N
Grease RPM:
30000 1/min
Oil RPM:
20600 1/min
m:
0.017 kg
New Model:
61902
Old Model:
61902
plastic roller wheel bearing ball bearing 61902 catalog:
| CLUNT No. | Dim. (mm) | N.W. | CLUNT No. | Dim. (mm) | N.W. | ||||
| d | D | B | ≈kg | d | D | B | ≈kg | ||
| 61900 | 10 | 22 | 6 | 0.009 | 61922 | 110 | 150 | 20 | 0.83 |
| 61901 | 12 | 24 | 6 | 0.014 | 61924 | 120 | 165 | 22 | 1.12 |
| 61902 | 15 | 28 | 7 | 0.018 | 61926 M | 130 | 180 | 24 | 1.48 |
| 61903 | 17 | 30 | 7 | 0.018 | 61928 M | 140 | 190 | 24 | 1.58 |
| 61904 | 20 | 37 | 9 | 0.036 | 61930 M | 150 | 210 | 28 | 2.40 |
| 619/22 | 22 | 39 | 9 | 0.036 | 61932 M | 160 | 220 | 28 | 2.54 |
| 61905 | 25 | 42 | 9 | 0.041 | 61934 M | 170 | 230 | 28 | 2.67 |
| 619/28 | 28 | 45 | 9 | 0.05 | 61936 M | 180 | 250 | 33 | 3.95 |
| 61906 | 30 | 47 | 9 | 0.045 | 61938 M | 190 | 260 | 33 | 4.13 |
| 619/32 | 32 | 52 | 10 | 0.068 | 61940 M | 200 | 280 | 38 | 7.19 |
| 61907 | 35 | 55 | 10 | 0.068 | 61944 M | 220 | 300 | 38 | 7.72 |
| 61908 | 40 | 62 | 12 | 0.104 | 61948 M | 240 | 320 | 38 | 8.37 |
| 61909 | 45 | 68 | 12 | 0.126 | 61952 M | 260 | 360 | 46 | 14.36 |
| 61910 | 50 | 72 | 12 | 0.131 | 61956 M | 280 | 380 | 46 | 14.85 |
KMY bearing deep groove ball bearing plastic roller wheel bearing ball bearing 61902
| Inside Diameter: | 15mm |
| Outside Diameter: | 28mm |
| Width: | 7mm |
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost effective solution
|
| Cars & Motorcycle repairs |
|
| Transmission and Gearboxes |
|
| Agricultural and Automotive |
|
| Electric motors / Industry |
|
| Pumps, Garden Machinery |
|
| Great value quality parts dispatched the same day |
Product Attributes
Category:
Deep Groove Ball Bearings
Model:
61902
d:
15 mm
D:
28 mm
B:
7 mm
Cr:
4350 N
C0r:
2260 N
Grease RPM:
30000 1/min
Oil RPM:
20600 1/min
m:
0.017 kg
New Model:
61902
Old Model:
61902
plastic roller wheel bearing ball bearing 61902 catalog:
| CLUNT No. | Dim. (mm) | N.W. | CLUNT No. | Dim. (mm) | N.W. | ||||
| d | D | B | ≈kg | d | D | B | ≈kg | ||
| 61900 | 10 | 22 | 6 | 0.009 | 61922 | 110 | 150 | 20 | 0.83 |
| 61901 | 12 | 24 | 6 | 0.014 | 61924 | 120 | 165 | 22 | 1.12 |
| 61902 | 15 | 28 | 7 | 0.018 | 61926 M | 130 | 180 | 24 | 1.48 |
| 61903 | 17 | 30 | 7 | 0.018 | 61928 M | 140 | 190 | 24 | 1.58 |
| 61904 | 20 | 37 | 9 | 0.036 | 61930 M | 150 | 210 | 28 | 2.40 |
| 619/22 | 22 | 39 | 9 | 0.036 | 61932 M | 160 | 220 | 28 | 2.54 |
| 61905 | 25 | 42 | 9 | 0.041 | 61934 M | 170 | 230 | 28 | 2.67 |
| 619/28 | 28 | 45 | 9 | 0.05 | 61936 M | 180 | 250 | 33 | 3.95 |
| 61906 | 30 | 47 | 9 | 0.045 | 61938 M | 190 | 260 | 33 | 4.13 |
| 619/32 | 32 | 52 | 10 | 0.068 | 61940 M | 200 | 280 | 38 | 7.19 |
| 61907 | 35 | 55 | 10 | 0.068 | 61944 M | 220 | 300 | 38 | 7.72 |
| 61908 | 40 | 62 | 12 | 0.104 | 61948 M | 240 | 320 | 38 | 8.37 |
| 61909 | 45 | 68 | 12 | 0.126 | 61952 M | 260 | 360 | 46 | 14.36 |
| 61910 | 50 | 72 | 12 | 0.131 | 61956 M | 280 | 380 | 46 | 14.85 |
