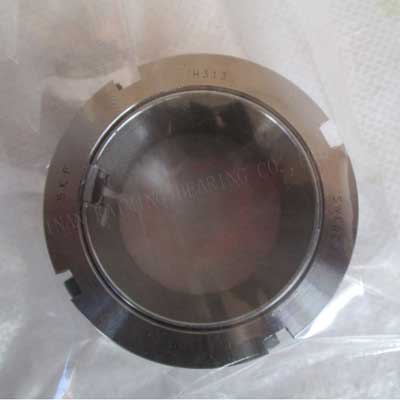

KMY bearing adapter sleeve high quality adapter sleeve H313
Brief Introduction of Adapter sleeve
1. Adapter sleeves are used for securing tapered bore bearings on to the cylindrical shafts. They facilitate easy mounting and dismounting. They are suitable for both smooth and stepped shafts. The sleeves can easily adapt to the shaft diameter.
2. The adapter sleeves have slotted design and an external taper. They are usually not surface treated but oiled and are supplied with a lock nut and a locking device. They have an oil duct, distribution groove, and a threaded side. For stepped shafts, they have two supply ducts and distribution grooves on the outer surface.
3. Withdrawal sleeves are used for mounting tapered bearings on to the cylindrical shafts. They facilitate easy mounting, securing and dismounting. They are suitable for both smooth and stepped shafts. Bearing sleeve can easily adapt to the shaft diameter. They are usually coated with a preservative, are slotted and have an external taper. This allows the sleeve to be used with wide spherical roller bearings. Withdrawal sleeves for oil injection have oil ducts and distribution grooves, on the threaded side.
4. We supply the Adapter Sleeves in accordance with ISO H3/1-1979, both Metric and Inch.
| H311 | 55 | 50 | 45 | 75 | 1311K 2211K | 21311K 22211K | 0.32 |
| H312 | 60 | 55 | 47 | 80 | 1312K 2212K | 21312K 22212K | 0.36 |
| H313 | 65 | 60 | 50 | 85 | 1313K 2213K | 21313K 22213K | 0.42 |
| H314 | 70 | 60 | 52 | 92 | 1314K 2214K | 21314K 22214K | 0.67 |
| H315 | 75 | 65 | 55 | 98 | 1315K 2215K | 21315K 22215K | 0.78 |
| H316 | 80 | 70 | 59 | 105 | 1316K 2216K | 21316K 22216K | 0.95 |
| H317 | 85 | 75 | 63 | 110 | 1317K 2217K | 21317K 22217K | 1.1 |
| H318 | 90 | 80 | 65 | 120 | 1318K 2218K | 21318K 22218K | 1.3 |
| H319 | 95 | 85 | 68 | 125 | 1319K 2219K | 21319K 22219K | 1.4 |
| H320 | 100 | 90 | 71 | 130 | 1320K 2220K | 21320K 22220K | 1.6 |
| H322 | 110 | 100 | 77 | 145 | 1322K 2222K | 21322K 22222K | 2.05 |
