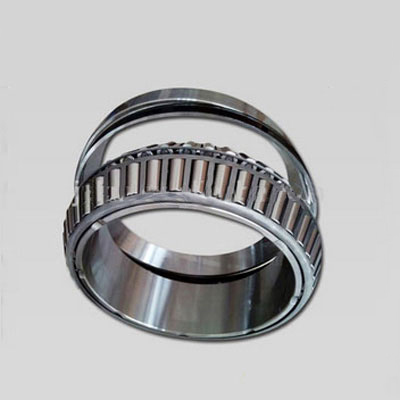

High quality tapered roller bearing 32034X2

High quality tapered roller bearing 32034X2

Quick Details

Material: GCR15

Model NO.:  32034X2

Products Name  Tapered Roller Bearings

Ring material  Chrome Steel, Carbon Steel

Material:  GCr15 GCr15SiMn

I.D.:  170 mm

O.D.:  260 mm

Thickness:  54 mm

Row Number:  Single row

Precision  P0,P6,P5,P4,P2

Clearance:  C0

Weight: 10.1kgs

Application: Mine machine, port hoisting machine, port transfer equipment, crane; excavator,

concrete machine,paper machine, weave machine, steel and electronic plants etc.

machines and equipments.

Tapered roller bearings consist of four interdependent components: the cone,

or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements;

and the cage, or roller retainer. The taper angles allow the bearing to handle

a combination of radial and thrust loads. The steeper the cup angle, the greater

the ability of the tapered roller bearing to handle thrust loads.

Features:

High quality through hardened bearing steel

Optimized, engineered internal geometry

Highly consistent, reliable, and flexible manufacturing

Globally interchangeable inch and metric designs

Available integrated seal
