| Quantity: | |
|---|---|
6405
KMY
8482102000
High quality bearings 6405 ball bearing 6405 made in USA JAPAN
Deep groove ball bearing:6000 sereis;6200 series;6300 series;6700 series;6800 series;6900 series;16000 series and width bearings
Inch bearing(inch deep groove ball bearing): 1601-1658;R2-R24
Miniature ball bearing:604-609;623-629;634-639;694-699;684-689, MR Series
Flange bearings(flange deep groove ball bearing): F series, MF series, FR series
1.Description of ball bearing 6405
Model Number | High quality bearings 6405 ball bearing 6405 made in USA JAPAN |
Brand Name | KMY |
Structure | Deep groove |
Type | Ball |
Bore Size | 10~100(mm) |
Outside Diameter | 15~215(mm) |
width | 5~60(mm) |
Seals Type | OPEN 2Z 2RS Z RS |
Material | GCR-15 chrom steel,Bearing Steel |
Cage material | Nylon ,steel , brass |
Clearance | C0,C2,C3,C4,C5 |
Vibration | Zv1,Zv2 and Zv3 |
Precision Rating | P0,P6,P5 |
Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on . |
Number of Row | Single Row |
Guarantee | One year. |
Certifications | ISO 9001:2000 |
Package | Single color box or according to buyers requirement . |
Place of Origin | China (Mainland) |
MOQ | 10000 pieces |
Service | (1) Professional technology service |
(2) Installation of consulting services | |
(3) OEM service | |
(4)Agent | |
Payment Term | T/T in advance or L/C, Western Union, Paypal |
Port | Qingdao / Shanghai/Ningbo |
2.China manufacturer bearing 6200 series
| Bearing No. | Boundary dimensions | Basic load ratings (kN) | Limiting speed | Mass | |||||
| mm | Dynamic | Static | rpm | Kg | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | ||
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.38 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.82 | 3.05 | 22000 | 26000 | 0.035 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.65 | 3.72 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.58 | 4.78 | 18000 | 21000 | 0.064 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 16000 | 18000 | 0.103 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.88 | 13000 | 15000 | 0.127 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.5 | 11000 | 13000 | 0.2 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.5 | 15.2 | 9800 | 11000 | 0.288 |
| 6208 | 40 | 80 | 18 | 1.1 | 29.5 | 18 | 8700 | 10000 | 0.368 |
| 6209 | 45 | 85 | 19 | 1.1 | 31.5 | 20.5 | 7800 | 9200 | 0.416 |
| 6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 7100 | 8300 | 0.463 |
| 6211 2rs | 55 | 100 | 21 | 1.5 | 43.4 | 29.4 | 6400 | 7600 | 0.607 |
| 6212 | 60 | 110 | 22 | 1.5 | 52.4 | 36.2 | 6000 | 7000 | 0.783 |
| 6213 | 65 | 120 | 23 | 1.5 | 57.2 | 40.1 | 5500 | 6500 | 0.99 |
| 6214 | 70 | 125 | 24 | 1.5 | 62.2 | 44.1 | 5100 | 6000 | 1.07 |
| 6215 | 75 | 130 | 25 | 1.5 | 67.4 | 48.3 | 4800 | 5600 | 1.18 |
| 6216 | 80 | 140 | 26 | 2 | 72.7 | 53 | 4500 | 5300 | 1.4 |
| 6217 | 85 | 150 | 28 | 2 | 84 | 61.9 | 4200 | 5000 | 1.79 |
| 6218 | 90 | 160 | 30 | 2 | 96.1 | 71.5 | 4000 | 4700 | 2.15 |
| 6219 | 95 | 170 | 32 | 2.1 | 109 | 81.9 | 3700 | 4400 | 2.62 |
| 6220 | 100 | 180 | 34 | 2.1 | 122 | 93.1 | 3500 | 4200 | 3.14 |
| 6221 | 105 | 190 | 36 | 2.1 | 133 | 105 | 3400 | 4000 | 3.7 |
| 6222 | 110 | 200 | 38 | 2.1 | 144 | 117 | 3200 | 3800 | 4.36 |
| 6224 | 120 | 215 | 40 | 2.1 | 155 | 131 | 2900 | 3400 | 5.15 |
| 6226 | 130 | 230 | 40 | 3 | 167 | 146 | 2700 | 3100 | 5.82 |
| 6228 | 140 | 250 | 42 | 3 | 166 | 150 | 2500 | 2900 | 7.57 |
| 6230 | 150 | 270 | 45 | 3 | 176 | 168 | 2300 | 2700 | 9.41 |
| 6232 | 160 | 290 | 48 | 3 | 185 | 186 | 2100 | 2500 | 11.7 |
| 6234 | 170 | 310 | 52 | 4 | 212 | 223 | 2000 | 2400 | 14.5 |
| 6236 | 180 | 320 | 52 | 4 | 227 | 241 | 1900 | 2200 | 15.1 |
| 6238 | 190 | 340 | 55 | 4 | 255 | 281 | 1800 | 2100 | 18.2 |
| 6240 | 200 | 360 | 58 | 4 | 269 | 310 | 1700 | 2000 | 21.6 |
| 6244 | 220 | 400 | 65 | 4 | 297 | 365 | 1500 | 1800 | 30 |
3.Application of bearing 6405:
Deep groove ball bearing 6405 2rs can be used in transmission, instrumentation , electrical , household appliances, internal combustion engines, transport vehicles , agricultural machinery, construction machinery , engineering machinery , roller skate style , yo-yo , etc.

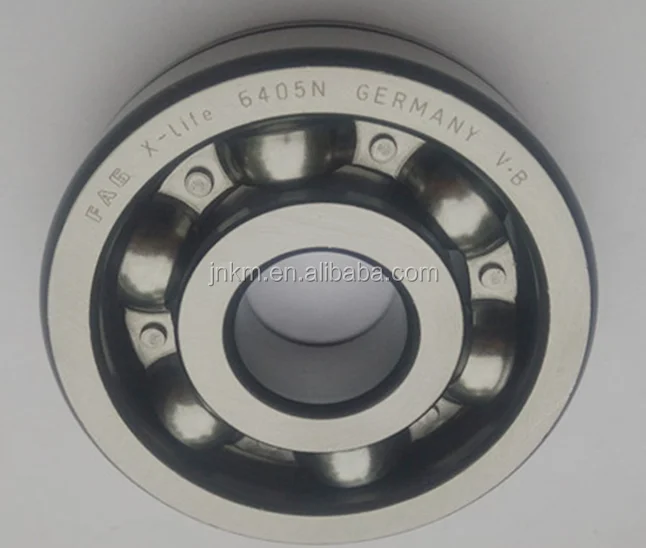

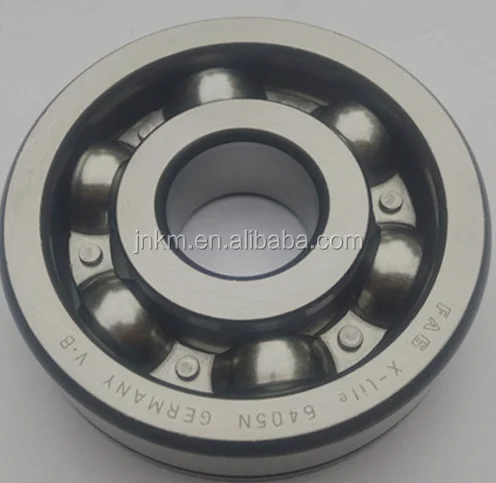

4.Some pictures of bearing 6405:
High quality bearings 6405 ball bearing 6405 made in USA JAPAN
Deep groove ball bearing:6000 sereis;6200 series;6300 series;6700 series;6800 series;6900 series;16000 series and width bearings
Inch bearing(inch deep groove ball bearing): 1601-1658;R2-R24
Miniature ball bearing:604-609;623-629;634-639;694-699;684-689, MR Series
Flange bearings(flange deep groove ball bearing): F series, MF series, FR series
1.Description of ball bearing 6405
Model Number | High quality bearings 6405 ball bearing 6405 made in USA JAPAN |
Brand Name | KMY |
Structure | Deep groove |
Type | Ball |
Bore Size | 10~100(mm) |
Outside Diameter | 15~215(mm) |
width | 5~60(mm) |
Seals Type | OPEN 2Z 2RS Z RS |
Material | GCR-15 chrom steel,Bearing Steel |
Cage material | Nylon ,steel , brass |
Clearance | C0,C2,C3,C4,C5 |
Vibration | Zv1,Zv2 and Zv3 |
Precision Rating | P0,P6,P5 |
Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on . |
Number of Row | Single Row |
Guarantee | One year. |
Certifications | ISO 9001:2000 |
Package | Single color box or according to buyers requirement . |
Place of Origin | China (Mainland) |
MOQ | 10000 pieces |
Service | (1) Professional technology service |
(2) Installation of consulting services | |
(3) OEM service | |
(4)Agent | |
Payment Term | T/T in advance or L/C, Western Union, Paypal |
Port | Qingdao / Shanghai/Ningbo |
2.China manufacturer bearing 6200 series
| Bearing No. | Boundary dimensions | Basic load ratings (kN) | Limiting speed | Mass | |||||
| mm | Dynamic | Static | rpm | Kg | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | ||
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.38 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.82 | 3.05 | 22000 | 26000 | 0.035 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.65 | 3.72 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.58 | 4.78 | 18000 | 21000 | 0.064 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 16000 | 18000 | 0.103 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.88 | 13000 | 15000 | 0.127 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.5 | 11000 | 13000 | 0.2 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.5 | 15.2 | 9800 | 11000 | 0.288 |
| 6208 | 40 | 80 | 18 | 1.1 | 29.5 | 18 | 8700 | 10000 | 0.368 |
| 6209 | 45 | 85 | 19 | 1.1 | 31.5 | 20.5 | 7800 | 9200 | 0.416 |
| 6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 7100 | 8300 | 0.463 |
| 6211 2rs | 55 | 100 | 21 | 1.5 | 43.4 | 29.4 | 6400 | 7600 | 0.607 |
| 6212 | 60 | 110 | 22 | 1.5 | 52.4 | 36.2 | 6000 | 7000 | 0.783 |
| 6213 | 65 | 120 | 23 | 1.5 | 57.2 | 40.1 | 5500 | 6500 | 0.99 |
| 6214 | 70 | 125 | 24 | 1.5 | 62.2 | 44.1 | 5100 | 6000 | 1.07 |
| 6215 | 75 | 130 | 25 | 1.5 | 67.4 | 48.3 | 4800 | 5600 | 1.18 |
| 6216 | 80 | 140 | 26 | 2 | 72.7 | 53 | 4500 | 5300 | 1.4 |
| 6217 | 85 | 150 | 28 | 2 | 84 | 61.9 | 4200 | 5000 | 1.79 |
| 6218 | 90 | 160 | 30 | 2 | 96.1 | 71.5 | 4000 | 4700 | 2.15 |
| 6219 | 95 | 170 | 32 | 2.1 | 109 | 81.9 | 3700 | 4400 | 2.62 |
| 6220 | 100 | 180 | 34 | 2.1 | 122 | 93.1 | 3500 | 4200 | 3.14 |
| 6221 | 105 | 190 | 36 | 2.1 | 133 | 105 | 3400 | 4000 | 3.7 |
| 6222 | 110 | 200 | 38 | 2.1 | 144 | 117 | 3200 | 3800 | 4.36 |
| 6224 | 120 | 215 | 40 | 2.1 | 155 | 131 | 2900 | 3400 | 5.15 |
| 6226 | 130 | 230 | 40 | 3 | 167 | 146 | 2700 | 3100 | 5.82 |
| 6228 | 140 | 250 | 42 | 3 | 166 | 150 | 2500 | 2900 | 7.57 |
| 6230 | 150 | 270 | 45 | 3 | 176 | 168 | 2300 | 2700 | 9.41 |
| 6232 | 160 | 290 | 48 | 3 | 185 | 186 | 2100 | 2500 | 11.7 |
| 6234 | 170 | 310 | 52 | 4 | 212 | 223 | 2000 | 2400 | 14.5 |
| 6236 | 180 | 320 | 52 | 4 | 227 | 241 | 1900 | 2200 | 15.1 |
| 6238 | 190 | 340 | 55 | 4 | 255 | 281 | 1800 | 2100 | 18.2 |
| 6240 | 200 | 360 | 58 | 4 | 269 | 310 | 1700 | 2000 | 21.6 |
| 6244 | 220 | 400 | 65 | 4 | 297 | 365 | 1500 | 1800 | 30 |
3.Application of bearing 6405:
Deep groove ball bearing 6405 2rs can be used in transmission, instrumentation , electrical , household appliances, internal combustion engines, transport vehicles , agricultural machinery, construction machinery , engineering machinery , roller skate style , yo-yo , etc.
4.Some pictures of bearing 6405:
