7016
NSK
8482103000

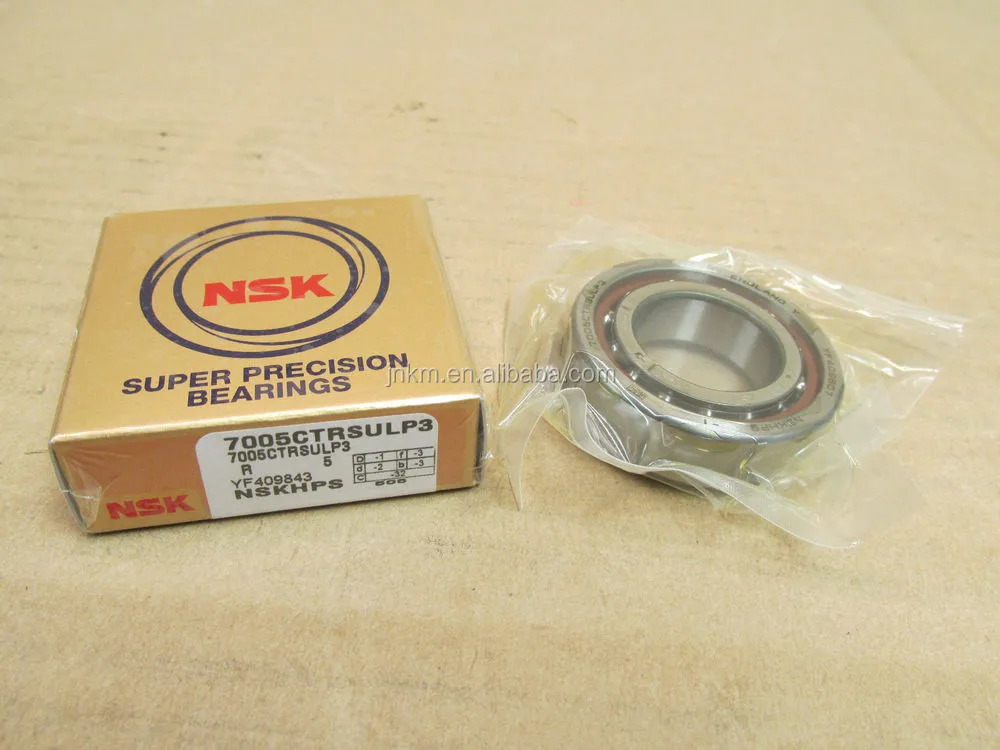

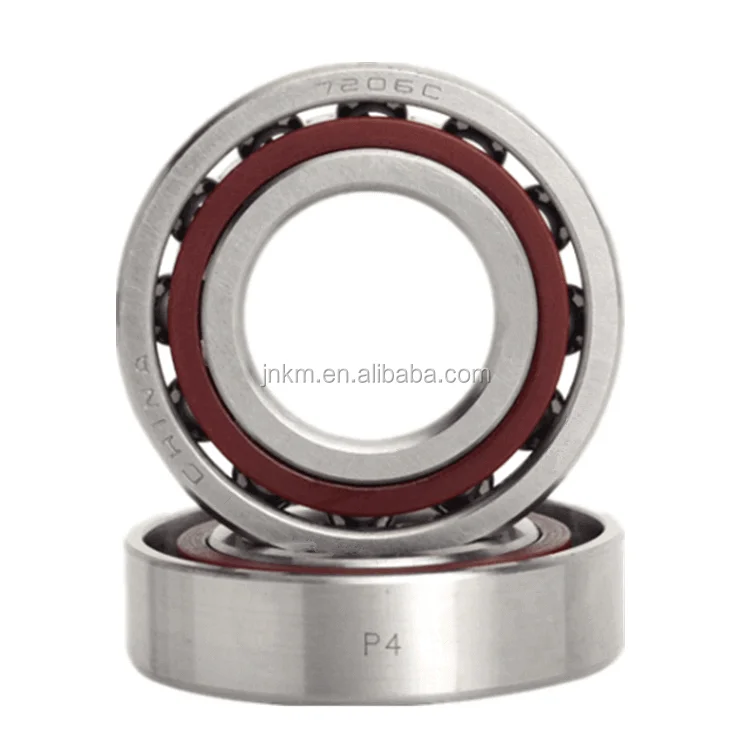

High precision NSK angular contact ball bearing 7016 P4 P5
1.Description of bearing 7000
1)Quality:ISO9001:2000
2)Price:US$0.56~US$11.27
3)Delivery:within 5 working days.
4)OEM service.
2.Apllication of ball bearing 7016
Machine tool spindles, high-frequency motors, gas turbine, centrifugal separator,
small car front wheel and the differential pinion shaft.
3.Angular contact ball bearing list:
Bearing | b | D | B | Cr | Cor | Weight |
(mm) | (mm) | (mm) | (kN) | (kN) | (kg) | |
7200C | 10 | 30 | 9 | 5 | 2.35 | 0.031 |
7201C | 12 | 32 | 10 | 7.9 | 3.85 | 0.038 |
7201AC | 12 | 32 | 10 | 7.9 | 3.85 | 0.038 |
7201B | 12 | 32 | 10 | 7.9 | 3.85 | 0.038 |
7202C | 15 | 35 | 11 | 8065 | 4.55 | 0.048 |
7202AC | 15 | 35 | 11 | 8065 | 4.55 | 0.048 |
7202B | 15 | 35 | 11 | 8065 | 4.55 | 0.048 |
7203C | 17 | 40 | 12 | 10.9 | 5.9 | 0.07 |
7203AC | 17 | 40 | 12 | 10.9 | 5.9 | 0.07 |
7203B | 17 | 40 | 12 | 10.9 | 5.9 | 0.07 |
7204C | 20 | 47 | 14 | 15.5 | 9 | 0.112 |
7204AC | 20 | 47 | 14 | 15.5 | 9 | 0.112 |
7204B | 20 | 47 | 14 | 15.5 | 9 | 0.112 |
7205C | 25 | 52 | 15 | 16.6 | 10.2 | 0.135 |
7205AC | 25 | 52 | 15 | 16.6 | 10.2 | 0.135 |
7205B | 25 | 52 | 15 | 16.6 | 10.2 | 0.135 |
7206C | 30 | 62 | 16 | 23 | 14.7 | 0.208 |
7206AC | 30 | 62 | 16 | 23 | 14.7 | 0.208 |
7206B | 30 | 62 | 16 | 23 | 14.7 | 0.208 |
7207C | 35 | 72 | 17 | 30.4 | 20.1 | 0.295 |
7207AC | 35 | 72 | 17 | 30.4 | 20.1 | 0.295 |
7207B | 35 | 72 | 17 | 30.4 | 20.1 | 0.295 |
7208C | 40 | 80 | 18 | 36.4 | 25.2 | 0.382 |
7208AC | 40 | 80 | 18 | 33.6 | 23.3 | 0.382 |
7208B | 40 | 80 | 18 | 30.6 | 21.3 | 0.382 |
7209C | 45 | 85 | 19 | 40.8 | 28.7 | 0.43 |
7210AC | 50 | 90 | 20 | 37.535.7 | 26.7 | 0.485 |
4.Angular contact ball bearing type:
Angular contact ball bearings are: 7000 c (∝ = 15 °) and 7000 ac type (∝ = 25 °) and 7000 b (∝ = 40 °) several types.
Company Promises:
1)Our company insists on the "quality first, credit first" business ideas and our product specification iswell-founded.
We have a good reputation in the international market by our perfect service and sufficient supply.
2) We use the highest quality, fastest delivery time, the best service!
We sincerely want every customer to establish friendly relations of cooperation.

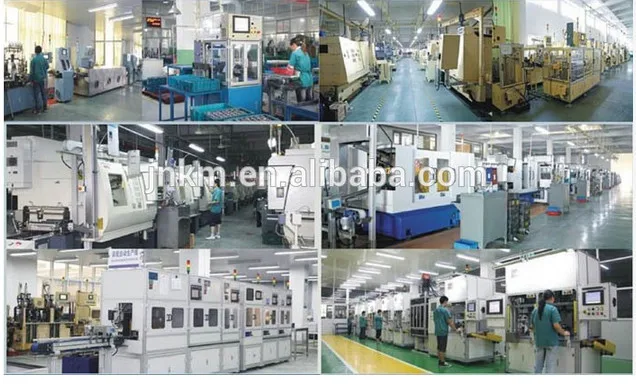

Bearings production lines :
Bearings Certification:
