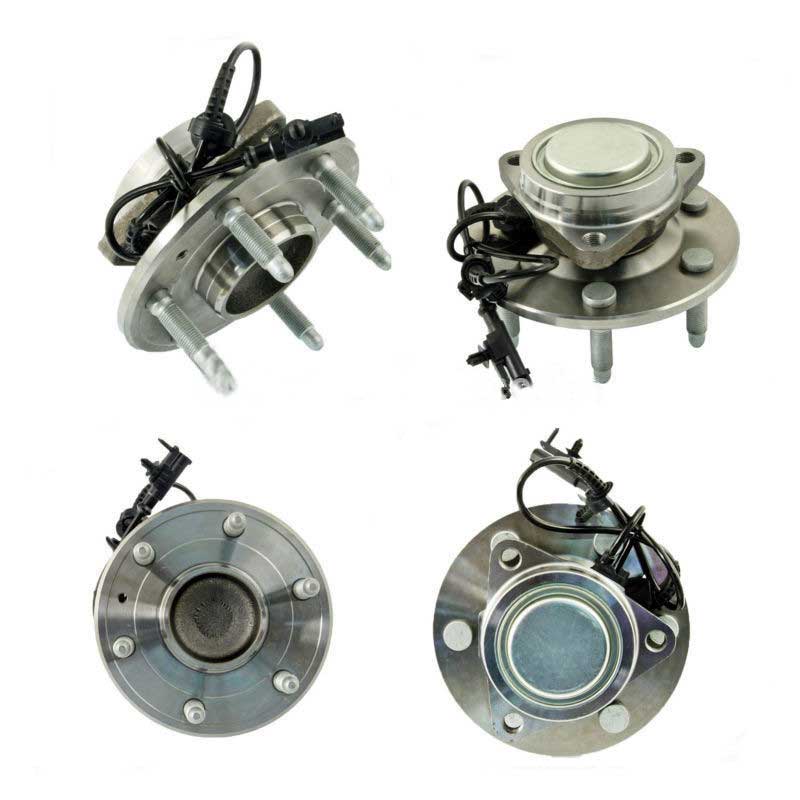

High precision Engineering machinary wheel hub bearing 515067 for Land Rover
1.Specification:
Outer Ring & Flange: 65Mn
Inner Ring: Gcr15
Cage: Nylon PA66 -A3HG5
Bolt: 35CrMo
Grease: shell, Alvania, Esso Standard…
| Name | Value |
| Bolt Quantity I | 3 |
| Gen Type | 3 |
| Wheel Stud Qty | 6 |
| Bolt Circle Diameter B(mm) | 139.7 |
| Bolt circle Diameter H(mm) | 126 |
| Lug Bolts(Y/N) | N |
| Brake Pilot Dia E(mm) | 78.4 |
| Driven-Non Driven | N |
| Flange Diameter A(mm) | 180 |
| Flange Offset F(mm) | 49.9 |
| Hub Pilot Dia G(mm) | 99.3 |
| Wheel Pilot Dia D(mm) | 77.8 |
| Tone Ring/Senser/Encoder | S-Wire |
| ABS/Non-ABS | Y |
| Bolt Circle Diameter B(in.) | 5.500 |
| Bolt Circle Diameter H(in.) | 4.961 |
| Wheel Stud Size(in.) | M14x1.5 |
| Bolt Size I(in.) | M14x1.5 |
| Brake Pilot Dia E(in.) | 3.087 |
| Flange Diameter A(in.) | 7.087 |
| Wheel Pilot Dia D(in.) | 3.063 |
| Flange Offset F(in.) | 1.953 |
| Hub Pilot Dia G(in.) | 3.909 |
| Flange(#) | 2 |
