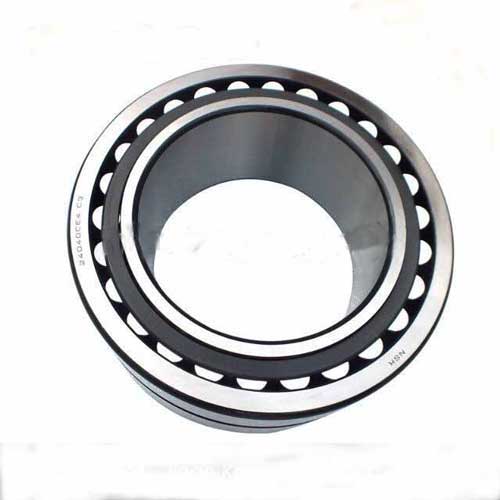

High performance low vibration spherical roller bearing 24040 CCK/W33

High performance low vibration spherical roller bearing 24040 CCK/W33

Quick Details

Type: Roller

Brand Name: KMY

Bore Size: 200 mm

Outside Diameter: 310 mm

Model Number: 24040

bearing Precision Rating: P0/P2/P4/P5/P6

Seals Type: Open

Number of Row: Double Row

Place of Origin: China (Mainland)

Bearing Material: Bearing Steel(GCr15),Chrome Steel,Carburized

Bearing Cage: Steel,Brass,Nylon

Bearing Certificate: ISO 9001:2000,SGS,BV

Bearing Clearance: C0,C2,C3,C1,C4,C5

Bearing Tolerance: ABEC-1,ABEC-3,ABEC-5

Bearing Service: OEM

Sample: available

Size: 200*310*109

Spherical roller bearings are designed with double-row raceway inner ring, spherical raceway outer ring and the convex symmetrical rollers. With the same center as the bearings, the spherically formed outer ring raceway can make self alignment, which can adapt the deflection between axis and housing bore.
