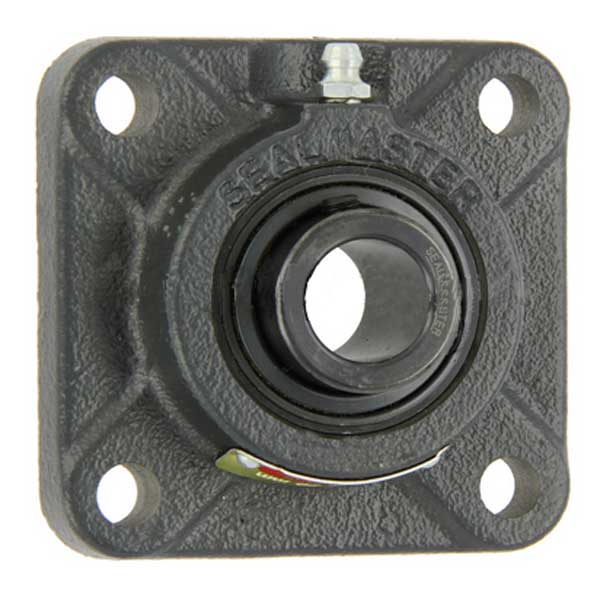

Flange-Mount Ball Bearing Unit Four-Bolt Square 40mm 4-Bolt Flange Bearing UCF20

Packaging Details: Wooden boxes and pallets or according to customer requirements. if necessory all according to your requirements Delivery Detail: within 5 days after receive advance payment

Quantity:

Flange-Mount Ball Bearing Unit Four-Bolt Square 40mm 4-Bolt Flange Bearing UCF208



Wide Slot

Normal Duty

Wide Inner Race

Set Screw Locking



Relubrication feature is standard

Bore Diameter: 40 mm
Bolt Center-to-Center Length: 4 in
Overall Length/Diameter: 5-1/8 in
Overall Height: 5-1/8 in
Mounting Type: Four-Bolt Square
Bore Type: Round
Duty Type: Standard Duty
Housing Material: Cast Iron
Locking Device: Set Screw
Seal Type: Felt
Expansion Type: Non-Expansion Bearing (Fixed)
Finish/Coating: Uncoated
Operating Temperature Range: -20 to +220 °F
Radial Dynamic Load Capacity: 7340 lb
Radial Static Load Capacity: 4467 lb
Length Through Bore: 2-1/64 in
Maximum RPM: 4150 RPM
Lubrication Type: Lubrication Fitting
Series: SF
Replacement Bearing: 5208



UCF208-40 4-Bolt Flange Bearing has combination of a set screw chrome steel insert bearing with slinger seal design and cast iron 4-Bolt flange housing with anti-rotation device



Common usage for UCF 4-Bolt Flange Bearing include: Agriculture, Automotive, Pump, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor and Fan Assemblies,Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment





** Interchange List **



  • AMI: UCF208-40
  • Browning: VF4S
  • Dodge Part #: 125890
  • Dodge: F4B-SC-40M
  • Fafnir: YCJ-40
  • IPTCI: UCF208-40
  • Link-Belt: F3-U2M40N
  • NTN: UCF208D1
  • Peer: UCF208-40

  • Sealmaster: SF-208
